2007-14 2&4WD Chevy Silverado, GMC Sierra 1500 4" Uniball Upper Control Arm lift kit, Performance shocks

Product No: K1062 FT

Availability: In stock

$967.50
FREE SHIPPING to Cont. U.S.

Important Notes

FOR DISCOUNTED PRICING NOT AVAILABLE ONLINE, PLEASE GIVE US A CALL.

Does not fit 2007 Classic or models with AWD or AutoRide. Does not fit 2014 models with aluminum control arms. Cannot use OEM tires & wheels.

33/12.50R17 tire w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming
275/65R18 tire w/ 18x8 wheels w/ 4 1/2” BS w/ minor trimming
295/55R20 tire w/ 20x9 wheels w/ 5” BS w/ minor trimming

Quick Overview

The Fabtech 4" lift kit for the Chevy Silverado and GMC Sierra retains the factory front Coilover shocks with steel spacers that help keep the stock ride. To keep the CV angles proper, the front differential is relocated while a 1/4" thick steel skid plate provides additional protection of the differential against road obstacles. The Fabtech replacement upper control arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs to allow unrestricted movement thru the travel range. These control arms are the best on the market for aggressive offroad driving in harsh conditions. A 1.5" rear block kit and rear Performance shocks complete this package.

Your vehicle will have increased ground clearance, extended range upper ball joints, extended fender clearance compared to a leveling kit for 33" tall tires. Installation can be reversed in the event you should want to.

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. Details

Product Attachments

View FileK1062 Instructions    Size: (1.94 MB)
View FileK1061, K1062, K1063 Instructions    Size: (2.29 MB)

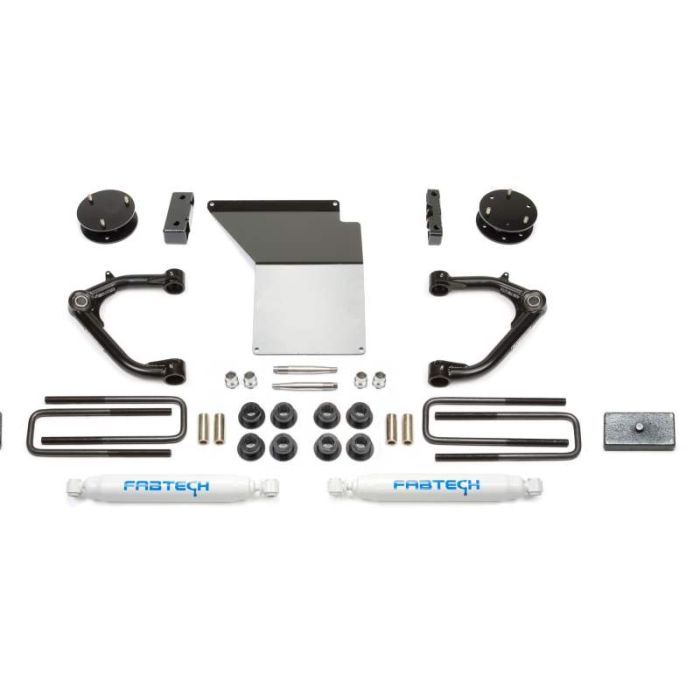

Fabtech K1062 Chevy Silverado, GMC Sierra 1500 lift kit

Be the first to review this product

    • Make: Chevrolet, GMC
    • Model: Silverado, Sierra
    • Vehicle: 2014 Silverado, Sierra 1500 (Steel) 4" Uniball Upper Control Arm lift kit, Performance shocks
    • 2or4: 4WD
