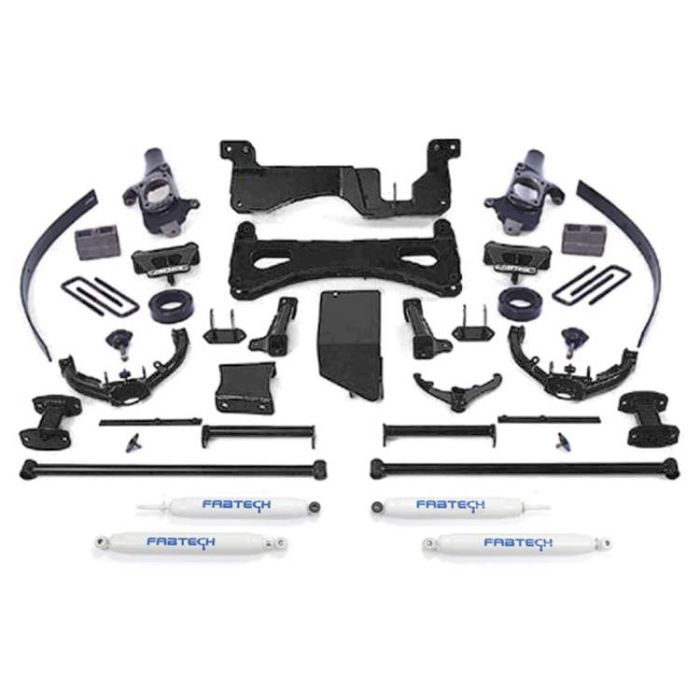

Fabtech K1030 Chevy Silverado, GMC Sierra 2500HD, 3500HD lift kit

Be the first to review this product

2007-08 2&4WD Chevy Silverado, GMC Sierra 2500HD, 3500HD 8" lift kit, Performance shocks

Product No: K1030 FT

Availability: In stock


Important Notes


Non dually models only. Requires welding, exhaust, and possible front drive shaft mods. Does not fit models with Quadrasteer. Can not use OEM wheel and tire. Will experience some loss of turning radius.

Dual steering stabilizer cannot be used with FTS71002 heavy duty tie rods.

Front Driveshaft modification required or order CV Driveshaft (FTS91004).

Quick Overview

Fabtech designed their 8” lift kit to include one-piece cast steering knuckles along with 1/4” thick, high arched crossmembers with tubular control arms. This combination provides an excellent ride quality and gives your Chevy Silverado, GMC Sierra 2500HD, 3500HD high ground clearance. No adjustment to the stock torsion bars is required providing a true 8” of lift. The front differential is relocated to eliminate front driveshaft vibration on models with the stock driveshaft.

The new tubular upper control arms will fit into the stock frame pockets using urethane bushings. These upper control arms include double shock mounting tabs for integration with Fabtech’s optional front dual shock hoop system.

The torsion bar drop brackets properly align the torsion bars to the relocated stock lower control arms. A differential skid plate, tubular crossmember supports , impact struts, rear bump stop brackets and rear driveshaft carrier bearing drop bracket are also included. The rear suspension lift uses a 4” block kit along with 2” add-a-leafs. Front and rear Performance shocks complete this package.

Use 37/12.50R17 tire w/ 17x9 wheels w/ 4-5/8” BS w/ minor trimming
Use 37/14.00R18 tire w/ 18x9 wheels w/ 5” BS w/ minor trimming
Use 37/13.50R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

View kit installation instructions

Required and/or Related Items

    • Make: Chevrolet, GMC
    • Model: 2500
    • Vehicle: 2007-08 Silverado, Sierra 2500HD, 3500HD 8" lift kit, Performance shocks
    • 2or4: 4WD
    • Upsell: FTS8004 FT, FTS8010 FT, FTS91004 FT, FTS71002 FT


Fabtech lift kit fits the following models:
2007 Silverado, Sierra 2500HD, 3500
2008 Silverado, Sierra 2500HD, 3500
