1977-87 4WD Chevy, GMC Pickup, Blazer, Jimmy, Suburban 1/2T 6" lift kit, Nitro shocks

Product No: C19N ZN

Availability: In stock


Important Notes

6" lift kit may require transfer case drop to alleviate driveline vibrations. The front driveshaft may need be to be clearanced at the double cardan joint to prevent binding at full droop on some models. The front exhaust cross-over pipe may need to be modified to clear the front driveshaft on some models

Quick Overview

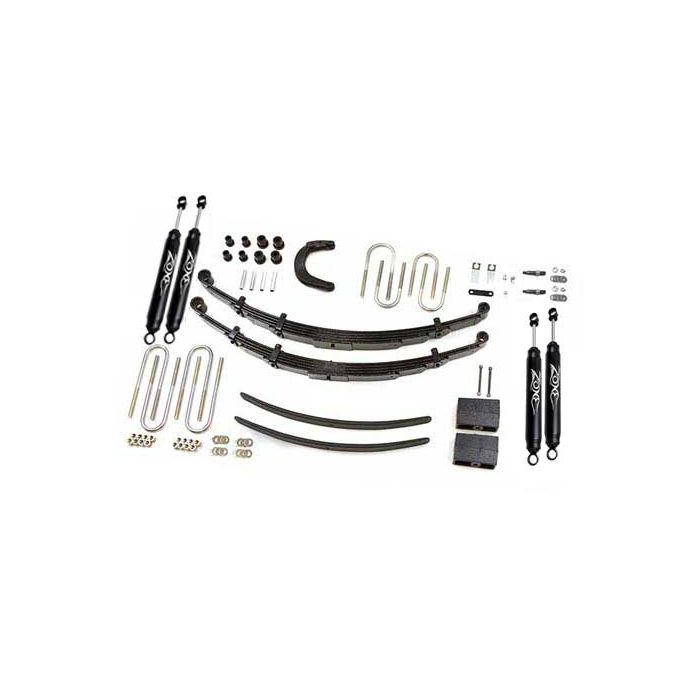

Zone Offroad has all that you need to complete your next project with an affordable yet high quality Chevy, GMC lift kit for your pickup, Blazer, Jimmy or Suburban. The leaf springs are a 5-leaf pack with anti-friction pads and center leaf spacer plates between each leaf. This design significantly decreases leaf pack internal friction for a smooth and consistent spring rate. By raising the steering arm, this system yields the factory drag link angle. The Zone Offroad 6" GMC, Chevrolet lift kit includes:

· Front Leaf Springs
· Bushings
· Steering Arm
· Front & Rear Brake Line Relocation Brackets
· Front & Rear Yellow Zinc Plated U-bolts with High Nuts and Washers
· Rear Block Kit and Add-a-Leafs
· 4 Black Zone Nitro Shocks

**Shock boots sold separately.
** If your vehicle came with a front sway bar, the Zone unique shackle sway bar link design is recommended.
** If your vehicle came with factory quad front shocks, order these auxiliary shocks separately. See below.

Product Attachments

View FileC10, C11, C15-24 Instructions    Size: (609.35 KB)

Required and/or Related Items

Zone Offroad C19N Chevy, GMC Pickup, Blazer, Jimmy, Suburban lift kit

Be the first to review this product

    • Make: Chevrolet, GMC
    • Model: 1500
    • Vehicle: 1977-87 1/2T Pickup 6" lift kit with Nitro shocks
    • 2or4: 4WD
    • Tire Size: 37x12.50 on 15x8 rims with 3.5" BS
    • Upsell: ZONC5401, ZONC5001, ZONQUAD-NITRO
