Fabtech K2119 Ford F250 Super Duty Radius Arm lift kit

Be the first to review this product

2008-16 4WD Ford F250 Super Duty 6" Radius Arm lift kit, Performance shocks

Product No: K2119 FT

Availability: In stock


Important Notes


Front drive shaft modification may be required to clear exhaust on gas motors.

Quick Overview

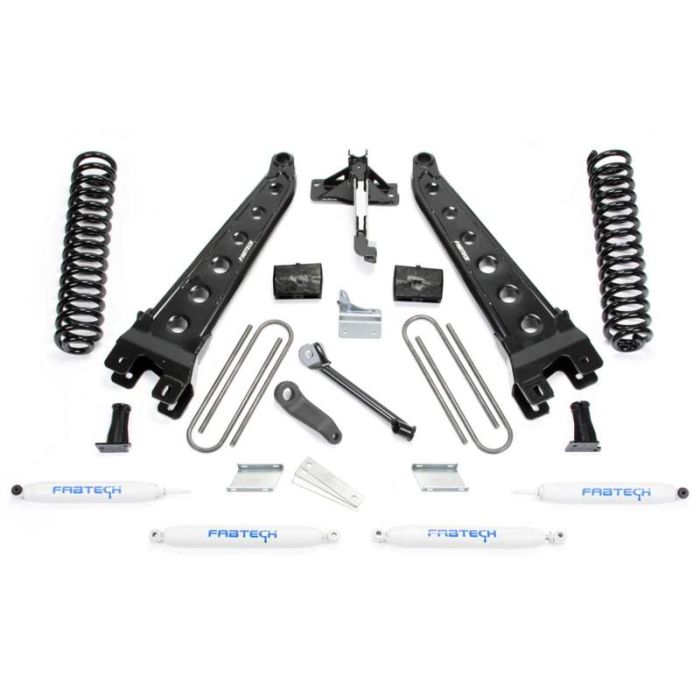

Are you a Ford owner looking to give your Super Duty a bigger stance and get it up over a larger tire and wheel? Look no farther than Fabtech Motorsports to provide what you are looking for! The Fabtech 6" patented Radius Arm lift kit for your Ford F250 Super Duty levels and substantially lifts the truck. The radius arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Included in this 6” Radius Arm lift kit are:

· 6" Lifted Coil Springs
· Heavy Duty Frame Brackets
· Extended Radius Arms
· Track Bar Relocation Bracket
· Pitman Arm
· Sway Bar Brackets
· Carrier Bearing Shim Kit
· Rear Block & U-Bolt Kit
· 4 Performance Shocks
· All Necessary Hardware
· Detailed Install Instructions

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming
Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming
Use 35/12.50R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details

View kit installation instructions
    • Make: Ford
    • Model: F250
    • Vehicle: 2008-10 F250 6" Radius Arm lift kit, Performance shocks
    • 2or4: 4WD


Fabtech 6" lift kit fits following models:
2008 Ford F250 Super Duty
2009 Ford F250 Super Duty
2010 Ford F250 Super Duty
2011 Ford F250 Super Duty
2012 Ford F250 Super Duty
2013 Ford F250 Super Duty
2014 Ford F250 Super Duty
2015 Ford F250 Super Duty
2016 Ford F250 Super Duty
