2005-07 4WD Ford F250, F350 Super Duty 4.5" Stage 2 lift kit, VS 2.5 shocks

$3,099.60
Product No
K64501
FREE SHIPPING Lower 48 States

Important Notes

* Link to Important Technical Notes for ICON Double Adjuster
* Springs are rated for Diesel engines only. Gas engine models will realize slightly more lift.
* Will not work on models with manual transmission.
* Pinch weld on 2005-10 Super Duty radius arms may come in contact with radius arm drop bracket hardware.
* Models with a 2-piece rear drive shaft should order carrier bearing shim kit.

Quick Overview

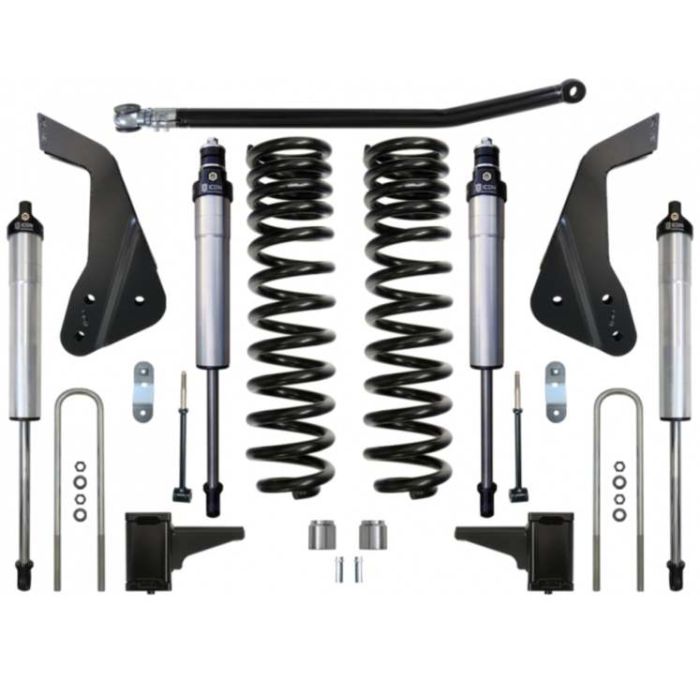

ICON believes this is the best riding suspension lift kit they have ever developed - so don't miss out!. Using top of the line materials and components is standard procedure for ICON. This lift kit features dual rate front coil springs and 2.0 Aluminum Series shocks along with radius arm drop bracket, adjustable track bar, sway bar drops, brake line brackets and a 5" rear block kit.

The vehicle specific (VS) 2.5 series shocks are specifically designed for each application in both length and damping tune. They are 100% rebuildable and revalvable. The large diameter and oil volume will provide better ride quality and heat dissipation properties than the standard 2.0 aluminum shock. The 2.5 series shocks operate over a wide temperature range and are designed with a nitrogen charged monotube internal reservoir. The 7/8" diameter induction hardened, chrome plated steel shaft with a one-piece digressive piston design along with CAD plated, precision machined 1026 DOM steel shock body with 6061 aluminum components and PTFE lined spherical bearings are many features of this high quality shock upgrade.

  • 50% increase in wheel travel
  • Less body-roll than stock truck
  • 4.5" more travel from ride height to front bump stops
  • Dual rate coil springs
  • Adjustable trac bar for perfect track alignment
  • Lifetime guarantee that coil springs won’t sag
  • Clears 35" tall tires & 37" tall tires w/ minor trimming
  • No change in towing capacity
  • No drive shaft modifications needed
  • 100% bolt-on system - no drilling,cutting or welding necessary for install
  • Made in the USA

Required and/or Related Items

    • Make: Ford
    • Model: F350
    • Vehicle: 2005-07 F350 4.5" Stage 2 lift kit, VS 2.5 shocks
    • Drive: 4WD
    • Tire Size: 35x12.50 on 8.5-9" wide wheel, 5" BS
    • Upsell: ICO33700
    • Initialize: 1
    • Record Id: 1
ICON lift kit fits the following models:
2005 Ford F250 Super Duty
2006 Ford F250 Super Duty
2007 Ford F250 Super Duty
2005 Ford F350 Super Duty
2006 Ford F350 Super Duty
2007 Ford F350 Super Duty
