2011-16 4WD Ford F250, F350; 2011 F450 Super Duty 8" Front Dirt Logic 4.0 Coilover Conversion System

$3,662.14
Product No
K2136DL-FT
FREE SHIPPING Lower 48 States

Important Notes

* Will not work with Leveling or Basic Systems.

Quick Overview

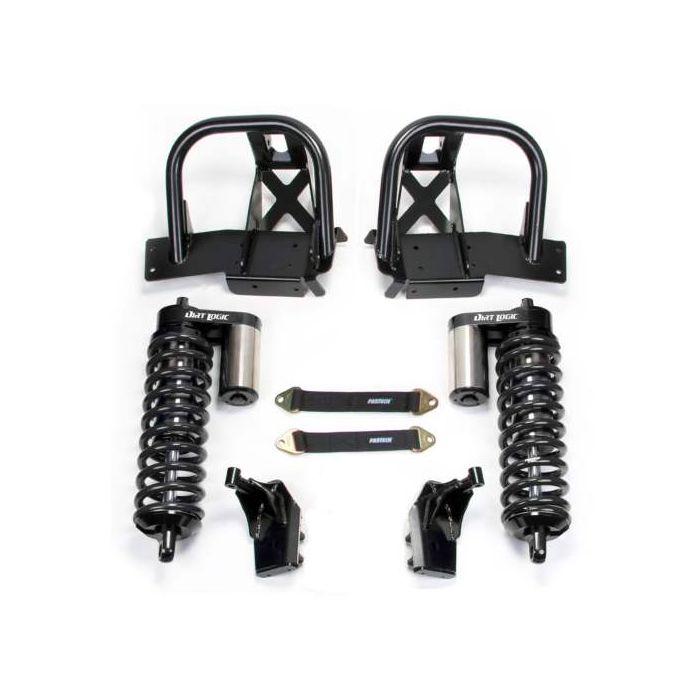

For the ultimate upgrade to your Ford F250 / F350 / F450 Super Duty, Fabtech offers the largest Coilover Shock conversion system in the world. Replace the stock coil spring buckets with the Fabtech Coilover conversion towers with super stout gusseting. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/ 4" thick steel that attach to the axle housing. Included in the Fabtech Front Coilover Conversion System are:

· Upper Coilover Mounts
· Lower Coilover Mounts
· Dirt Logic 4.0 Coilover Piggyback Reservoir Shocks
· Limiting Straps
· All Necessary Hardware
· Detailed Install Instructions

This Coilover system is compatible with both the Fabtech Radius Arm and 4 Link systems. To complete this conversion, opt for the optional Dirt Logic Hydraulic Bump Stops sold separately.

View kit installation instructions
    • Make: Ford
    • Model: F450
    • Vehicle: 2011 F450 8-Lug 8" Front Dirt Logic 4.0 Coilover Conversion System
    • Drive: 4WD
    • Upsell: FTS920242 FT

Fabtech 8" lift kit fits following models:2011 F350 Super Duty
2012 F350 Super Duty
2013 F350 Super Duty
2014 F350 Super Duty
2015 F350 Super Duty
2016 F350 Super Duty

2011 F450 Super Duty
