2016-Up 6-Lug Toyota Tacoma Stage 2 S2 Secondary Shock System, VS 2.5 aluminum shocks with CDCV

Redefine the offroad capacity of your Toyota Tacoma by installing a second front shock along with your ICON coilover system. This additional shock will effectively double the damping ability of the Tacoma's suspension. This means you can handle rougher terrain and larger obstacles when off-roading. This is a more affordable option as compared to long travel kits and allows an upgrade to be made in stages. The additional shock will drastically increase your off-road performance and is not difficult to install. As expected when buying any ICON product, this S2 secondary shock system incorporates the exceptional build quality you would expect. This shock system does not change the OE track width. The factory lower control arms are utilized. The combination of billet aluminum shock tower adapters, fabricated shock hoops and steel skid plates with shock mounts afford a straightforward installation. No major alteration of the vehicle's frame or other suspension components is required. As the components are 100% bolt on, they are also removable should the need arise. This modular design offers stand alone installation of the skid plates. These provide protection of the factory lower control arms from trail damage. The vehicle specific 2.5 CDCV reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force. When compressing at high velocity, this additional force helps prevent harsh bottom outs and also controls the suspension. With the turn of a knob, the externally adjustable CDC valve restricts oil flow into the reservoir creating 10 levels of compression damping force ranges.

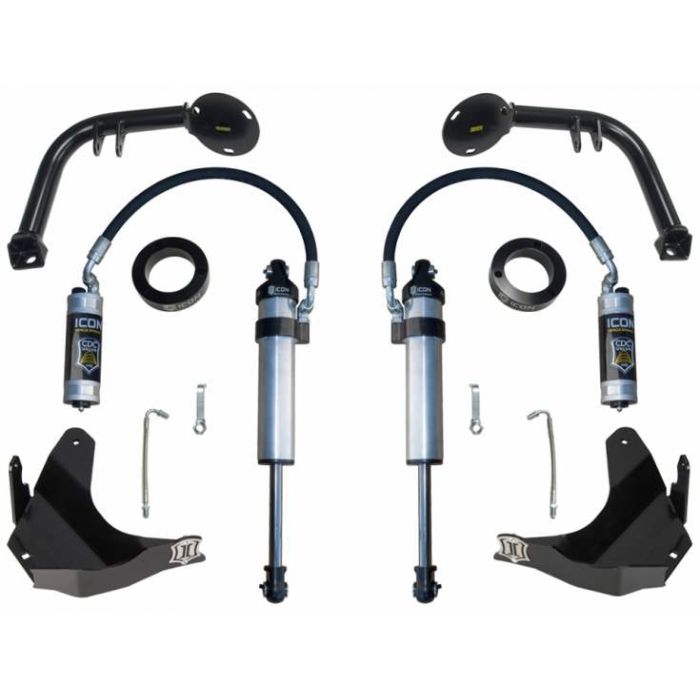

Kit Components
Billet aluminum shock tower adapters
Fabricated shock hoops
Steel skid plates
Shock mounts
Pair of 2.5 series CDCV shocks

Kit Features
Made in the USA
Drastically improves vehicle damping ability off-road
Increased vehicle stability on-road
Utilizes factory lower control arms
Maintains OE track width
Vehicle-specific tuned secondary shocks provide increased damping and oil volume
Shocks are fully rebuildable and revalveable
Factory bump stops are retained

View shock hoop installation instructions
View shock installation instructions
