2003-13 4WD Dodge Ram 2500, 3500 2.5" Stage 4 Leveling Kit, VS 2.5 Reservoir shocks

Product No
FREE SHIPPING Lower 48 States

Important Notes

* Link to Important Technical Notes for ICON Double Adjuster
* Lifted height specs based on Crew Cab diesel engine. Gas engine will yield slightly taller lift heights.
* OEM steering stabilizer available separately for 2009+ models.

Quick Overview

This ICON mid-level Stage 4 leveling system provides a smooth highway feel but is also great for the off-road enthusiast. Steel upper and lower links will increase the Ram's performance, strength and range of alignment. Expect an improved ride and performance with link arms that decrease the bind typically found in the factory link bushings.

Any potential Death Wobble your Ram truck might experience is eliminated with the included front adjustable track bar. The factory OEM rubber bushing is eliminated and replaced with the ICON 1" captured uniball bearing on the driver side. This minimizes overall deflection while allowing the right amount of movement so steering wheel feedback is not present. ICON uses a PTFE lined rod end on the passenger side to additionally reduce deflection and threads onto the left/right adjuster that allows you to adjust the track bar while on the truck for the perfect front end alignment.

The ICON 2.5 reservoir shocks operate over a wide temperature range . They feature a one-piece digressive piston design, 7/8” diameter chrome plated shock shaft, polyurethane bushings, forged steel mounting stems, PTFE lined spherical bearings, 6061 aircraft grade aluminum CNC machined components, CAD plated, and a precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance.

ICON has spent endless hours testing and tuning these components and shocks as a complete package to provide the best suspension solution on the market.

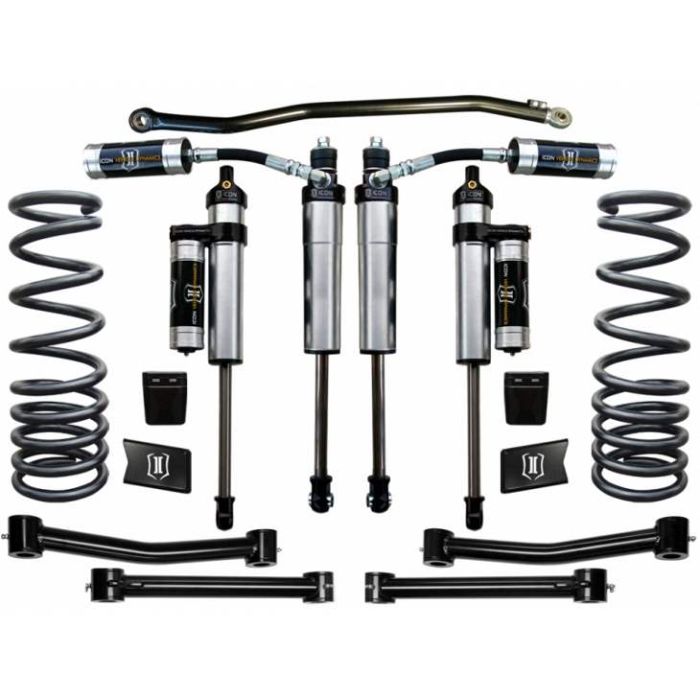

• ICON engineered dual rate coil springs
• Match tuned Front and Rear VS 2.5 Reservoir shocks
• Adjustable front track bar
• Polyurethane bump stops
• Sway bar drop brackets
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• Made in the USA

View track bar installation instructions

Required and/or Related Items

    • Make: Dodge
    • Model: 3500
    • Vehicle: 2003-12 Ram 3500 2.5" Stage 4 Leveling Kit, VS 2.5 Reservoir shocks
    • Drive: 4WD
    • Tire Size: 33x12.50 on 8.5-9" wheels with 5.75" BS
    • Upsell: ICO216520
    • Initialize: 1
    • Record Id: 1

ICON Vehicle Dynamics leveling kit fits following models:
2003 Ram 2500
2004 Ram 2500
2005 Ram 2500
2006 Ram 2500
2007 Ram 2500
2008 Ram 2500
2009 Ram 2500
2010 Ram 2500
2011 Ram 2500
2012 Ram 2500
2013 Ram 2500

2003 Ram 3500
2004 Ram 3500
2005 Ram 3500
2006 Ram 3500
2007 Ram 3500
2008 Ram 3500
2009 Ram 3500
2010 Ram 3500
2011 Ram 3500
2012 Ram 3500
2013 Ram 3500
