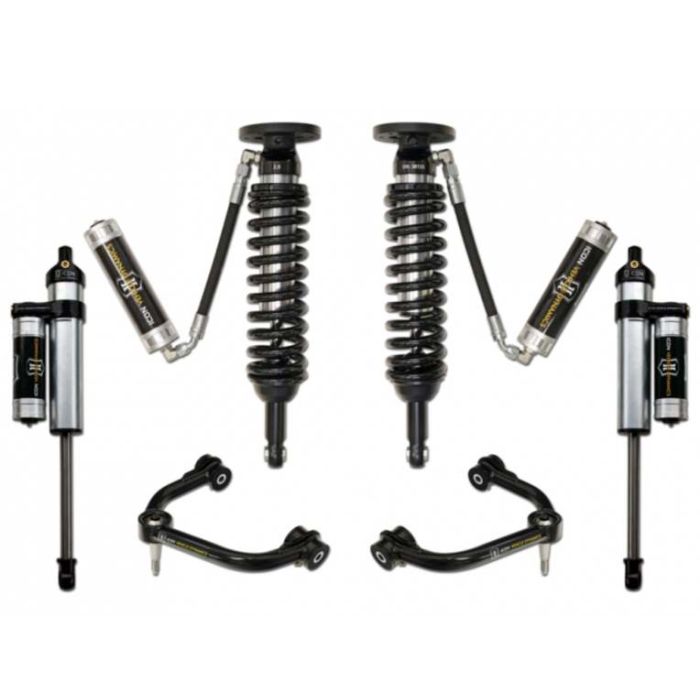

2009-13 4WD Ford F150 1.75-2.63" Stage 4 Reservoir Coilover Tubular UCA leveling kit, VS 2.5 Reservoir shocks
Important Notes
* Spanner wrench for adjusting ride height of Coilover shocks available separately.
* Coilover heights indicated are for a stock equipped vehicle
Quick Overview
If you're serious about your driving and want maximum performance whether on the highway or in the dirt, install the ICON Stage 4 Coilover leveling kit with Upper Control Arms on your Ford F150. This system was designed with the primary focus on increased wheel travel and damping capability. This translates into both on and off-road outstanding control and ride quality.
Features include 2.5 Coilover shocks that have an external reservoir and ICON-engineered Eibach coil springs. This combination gives you superior vehicle "feel" all through the range of travel. The coilovers are easily adjustable from 1.75" up to 2.63" to allow for larger wheel and tire combinations. The included Uniball upper control arms will add both strength and durability. They will aid in retaining the factory alignment spec range increasing caster over stock.
The vehicle specific (VS) shocks are specifically designed for each application. They are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. These ICON shocks operate over a wide temperature range and are designed with a nitrogen charged monotube remote reservoir with chrome plated hardened steel shaft with 6061 aluminum rod end, top cap and internals ensure strength and durability. Poly bushings, zinc plated sleeves for factory fitment. The 6063 anodized aluminum body provides superb heat dissipation, excellent corrosion resistance and a high-tech appearance. The rubber top out bumper allows noise free operation.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Adjustable coilovers provide 1.75-2.63" of lift height
- Tubular upper control arms for added strength, durability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% bolt-on system - no drilling, cutting, or welding necessary for install
The tubular upper control arms feature ICON's patented Delta Joint which is a high angle ball joint combinining the durability of a ball joint with the performance character of a traditional Uniball. The significant difference between the Uniball and ICON's Delta Joint is the elimination of the Uniball's exposure to the elements causing premature wear. The Delta Joint has two features the Uniball does not -- first, it has zinc plated housing to resist corrosion; and second, it comes with a tough grease seal to keep harmful elements out of the inner workings of the joint. This metal on metal construction along with a greasable design will provide not only noise-free operation but an extended life expectancy. Additionally, this upper control arm design makes it more robust than a uniball while making it capable of greater angularity than a typical ball joint.<
Required and/or Related Items
-
$34.95
- Make: Ford
- Model: F150
- Vehicle: 2009-13 F150 1.75-2.63" Stage 4 Reservoir Coilover Tubular UCA leveling kit, VS 2.5 Reservoir shocks
- Drive: 4WD
- Tire Size: 33X11.50 on factory wheels
- Upsell: ICO198000
- Initialize: 1
2009 Ford F150
2010 Ford F150
2011 Ford F150
2012 Ford F150
2013 Ford F150
