2017-23 4WD Ford F250, F350 Super Duty 2.5" Coil Leveling Kit, Performance shocks

If you’re looking to run 35’s on your Ford F250 or F350 Super Duty, Fabtech offers a 2.5” leveling kit that’ll do the job. These replacement coil springs provide lift for the larger tires with increased suspension travel while retaining the factory load carrying capacity.

The front sway bar is repositioned with brackets so the link ends don’t bind by going over center at full droop. Rather than longer brake lines, extensions are included to relocate them down on the frame to eliminate the possibility of over-stretching the lines. This keeps the factory brake system sealed for a fast and trouble-free installation. By retaining the factory bump stops, this will allow more travel with the Fabtech coil springs and components.

A heavy duty track bar bracket is included to keep the front axle from being pushed to one side. By keeping the front axle under the truck to the factory specs, this provides the correct tracking of the front and rear axle to provide excellent highway manners. A set of Fabtech Performance shocks are included.

Installation will level your Super Duty to nearly flat. If you want to keep more of the nose-down appearance, order the optional 4” rear block kit that replaces the factory block to provide an additional 1.5” of lift over stock.

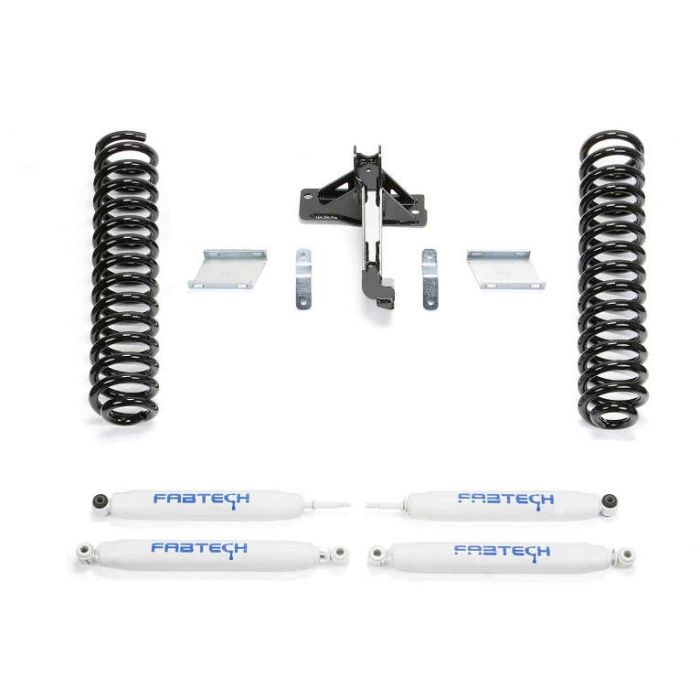

• Front Coil Springs
• Four Performance shocks
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Brakeline Extension Brackets
• Limited Lifetime Warranty

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. Details
