2020-UP 4WD Ford F250, F350 Super Duty 2.5" Stage 1 leveling kit, 2.0 VS Aluminum series monotube shocks
Important Notes
NOTE: This lift was designed for Crew Cab Diesel model trucks. The lift will fit on gas models, however, approximately 1" more front lift will be realized.
An adjustable track bar may be needed to realign the axle from left to right, or to add additional strength.
Rare cases require a 2.6 degree alignment cam on one side of vehicle for proper caster split
Quick Overview
The ICON 2.5" Stage 1 leveling kit for the Ford F250 or F350 Super Duty is an entry level system that’s perfect for street driving and mild off road use. This leveling kit has been tested and tuned as a complete package that will provide an improved ride quality and better performance over the stock suspension.
The 2.0 VS Aluminum series monotube shocks are valved for your Super Duty to balance the front and rear performance. They are 100% rebuildable and revalvable. The 2.0 series shocks operate over a wide temperature range and are designed with a nitrogen charged monotube internal reservoir. The 5/8" chrome plated hardened steel shaft with 6061 aluminum rod end, top cap and internals ensure strength and durability. Poly bushings, zinc plated sleeves for factory fitment. The 6063 anodized aluminum body provides superb heat dissipation, excellent corrosion resistance and a high-tech appearance. The rubber top out bumper allows noise free operation.

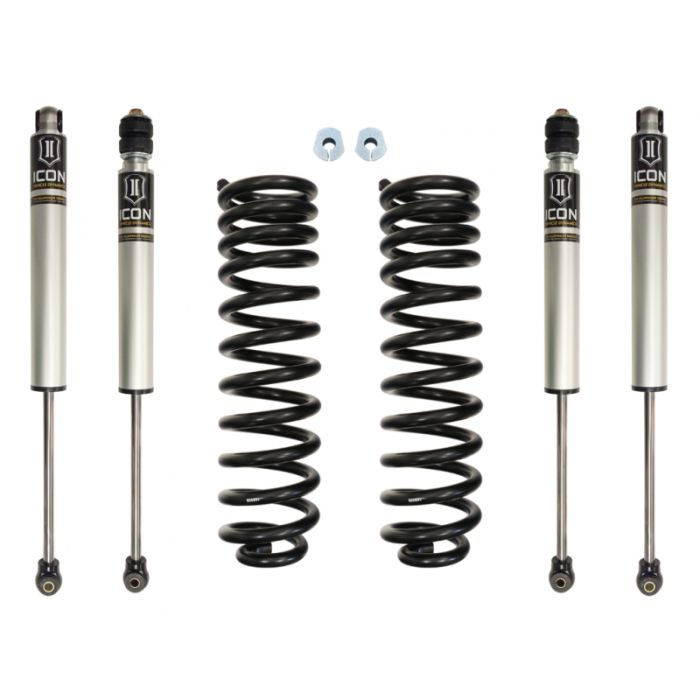

Kit Components
ICON-engineered dual rate coil springs
Front and rear 2.0 VS Aluminum series shocks
Alignment cams
Kit Features
Approximately 25% increased front wheel travel over stock
Exceptional vehicle control over varying terrain
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Made in the USA
View coil installation instructions
View shock installation instructions
Required and/or Related Items
-
$499.95
-
$184.95
- Make: Ford
- Model: F250, F350
- Vehicle: 2020-Up F250, F350 Diesel 2.5" Stage 1 leveling kit, 2.0 VS Aluminum series monotube shocks
- Drive: 4WD
- Tire Size: 35x12.50 on 8.5x9" wide wheels, 5" BS
- Upsell: ICO61111, ICO64038
- Initialize: 1
- Record Id: 2
ICON lift kit fits following models:
2020 Ford F250 Super Duty
2021 Ford F250 Super Duty
2020 Ford F350 Super Duty
2021 Ford F350 Super Duty
