2017-19 4WD Ford F250, F350 Super Duty 2.5" Stage 5 leveling kit, 2.5 VS CDCV Reservoir shocks

The ICON 2.5" Stage 5 leveling kit for the Ford F250 or F350 Super Duty is an entry level system that’s perfect for street driving and spirited off road use. This leveling kit has been tested and tuned as a complete package that will provide an improved ride quality and better performance over the stock suspension. The vehicle specific 2.5 CDCV reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The piggyback and remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force. When compressing at high velocity, this additional force helps prevent harsh bottom outs and also controls the suspension. FK Rod End bearings provide extended longevity and minimal deflection. With the turn of a knob, the externally adjustable CDC valve restricts oil flow into the reservoir creating 10 levels of compression damping force ranges.

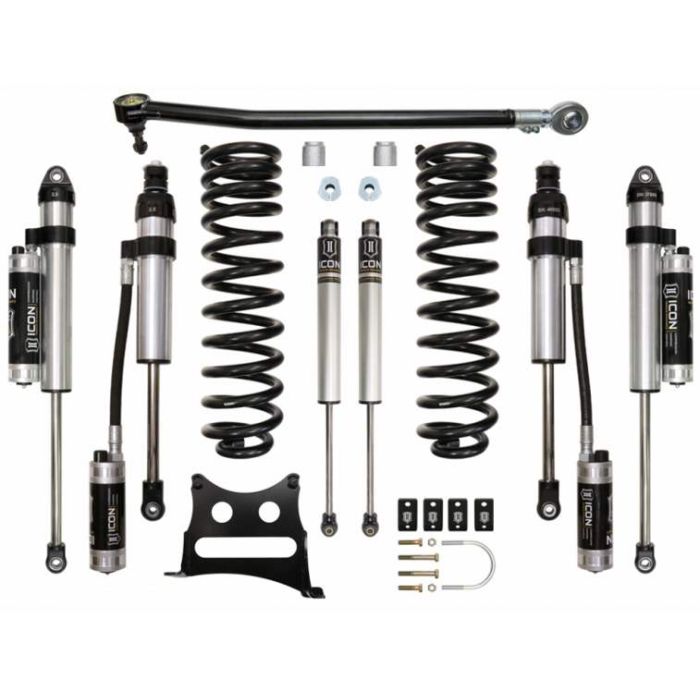

Kit Components
ICON-engineered dual rate coil springs
Front and rear 2.5 VS CDCV Reservoir shocks
Alignment cams
Adjustable Track Bar
Bump stop spacer kit
2.0 series Aluminum dual steering stabilizer

Kit Features
Approximately 25% increased front wheel travel over stock
Exceptional vehicle control over varying terrain
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Made in the USA

View coil installation instructions
View shock installation instruction
