2007-16 4WD Chevy Silverado, GMC Sierra 1500 3.5" UCA lift kit, Vertex Reservoir Coilovers & V2 Monotube Shocks

$1,959.95
Product No
19457-HK
FREE SHIPPING Lower 48 States

Important Notes

Fits models with both cast steel or aluminum factory control arms
Does NOT fit models with factory stamped steel control arms
Does NOT fit GMC Denali models with Magnetic Ride Control
If wider than the recommended 32x11.50 tire is used, offset wheels will be required and trimming may be required
If truck is equipped with a mass damper on the front differential, the damper must be removed

Quick Overview

If you are one of those off road enthusiasts who works hard all week so that you can play hard on your time off, look no farther than Rough Country for your lift kit needs. Rough Country offers incredible value on their parts with top quality engineering. The 3.5” lift kit for the Silverado or Sierra 1500 features Vertex Reservoir front coilovers and has everything you need to bolt it up and even return the truck to stock later if needed.


The Rough Country control arms POM ball joints that are preinstalled for greater range of motion and easier installation. These POM ball joints feature a Poloxymethylene ball race with a very low coefficient of friction to provide longer life. The larger ball diameter will improve range of motion and is designed to be maintenance free.This setup also includes replacement fabricated blocks which are stronger and less susceptible to damage from the environment. The savings of so much money on this kit will also leave you with plenty left over for wheels and larger tires!


If your driving style needs high performance shocks, check out Rough Country’s 2.5 Vertex 8-Stage adjustable reservoir shocks. With these shocks, you can perfectly dial in the ride type you need from smooth street ride to ultimate damping for off-roading demands. Each shock can be adjusted with a quick spin of the dial for exacting performance needs.

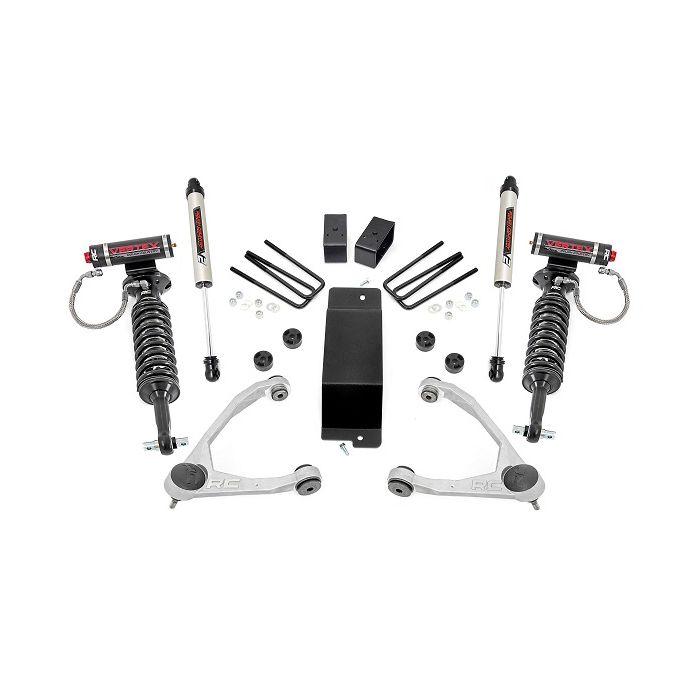

V2 Monotube shocks have a T6061 brushed aluminum body with black anodized accents that not only look great but dissipate heat faster than other materials. The lightning fast reaction with no cavitation is the result of an internal floating piston to separate the shock oil from the high-pressure nitrogen. This true performance shock is designed to be mounted body-up for a more interesting look. Included in the 3.5” Rough Country lift kit for the Silverado, Sierra 1500 are: ·



  • Front Vertex ReservoirCoilovers

  • Upper Control Arms

  • Upper POM Ball Joints

  • Differential Drop Spacers

  • Differential Skid Plate

  • Rear 3” Block & U-bolt Kit (replaces factory block)

  • Rear V2 Monotube Shocks

  • All Necessary Hardware

  • Detailed Install Instructions

  • Limited Lifetime Warranty


Tire and wheel recommendations:
285/70 R17 on factory 17" wheels (aftermarket wheels 17x9 with 0 to +18mm offset)
285/65 R18 on factory 18" wheels (aftermarket wheels 18x9 with 0 to +18mm offset)
285/55 R20 on factory 20"wheels (aftermarket wheels 20x9 with 0 to +18mm offset)


View lift kit installation instructions

    • Make: Chevrolet, GMC
    • Model: 1500
    • Vehicle: 2014-16 Silverado, Sierra 1500 3.5" UCA lift kit, Vertex Reservoir Coilovers & V2 Monotube Shocks
    • Drive: 4WD
    • Tire Size: 32x11.50 on factory wheels
    • Upsell: 1065 HK, 1101 HK, 1069 HK
    • Initialize: 1

Rough Country 3.5" lift kit fits following models:
2007 Silverado 1500
2008 Silverado 1500
2009 Silverado 1500
2010 Silverado 1500
2011 Silverado 1500
2012 Silverado 1500
2013 Silverado 1500
2014 Silverado 1500
2015 Silverado 1500
2016 Silverado 1500

2007 Sierra 1500
2008 Sierra 1500
2009 Sierra 1500
2010 Sierra 1500
2011 Sierra 1500
2012 Sierra 1500
2013 Sierra 1500
2014 Sierra 1500
2015 Sierra 1500
2016 Sierra 1500
