2020-24 4WD Chevy Silverado, GMC Sierra 2500HD, 3500HD with overloads 3" UCA lift kit, FOX Adventure Series shocks

Zone Offroad provides a great way to bridge the gap between a leveling kit and a full size suspension lift kit that’s cost effective and much simpler to install. Featured in this lift kit is a set of heavy duty replacement upper control arms that improve the range of motion for more suspension travel over rough terrain. These control arms dwarf factory control arms and are constructed using high strength steel, boxed and fully welded with CNC machined bushings and ball joint cups that are repositioned to operate in the neutral position at 3” of lift. Included are OE durometer rubber bushings and greasable OE-style heavy duty ball joints that ensure a quiet and reliable operation with superior corrosion resistance to uniball style arms.

Reindexed cast steel torsion keys lift the front of the vehicle. The CV axle operating angle is corrected with a small differential relocation kit. This will not affect ground clearance. Sway bar relocation brackets allow for full droop of the suspension. The rear lift is a 2” block and u-bolt kit that creates a level to slightly tail high stance. A set of FOX Adventure Series IFP gas shocks complete this package. Included in the Zone Offroad lift kit for your Silverado or Sierra 2500HD or 3500HD are the following:

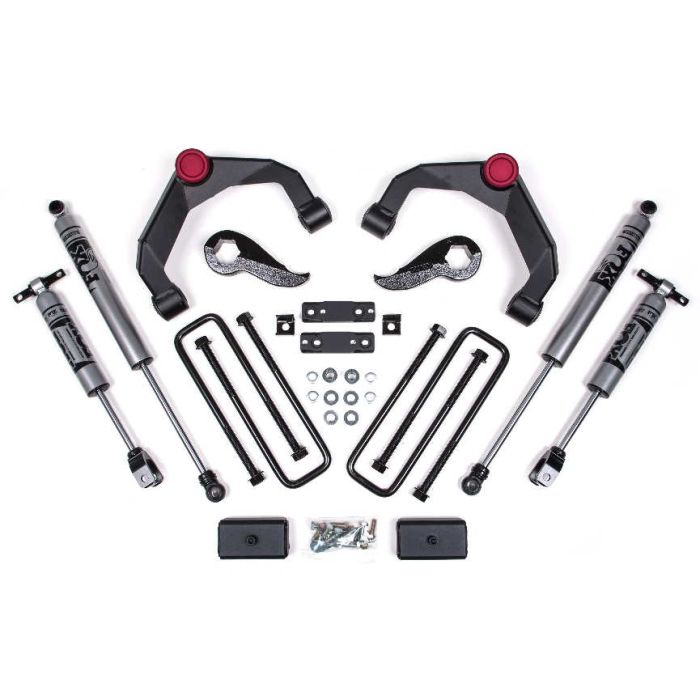

Kit Components
High strength Upper Control Arms
Cast torsion bar keys
Front differential relocation brackets
Sway bar relocation brackets
2" rear lift blocks and heavy duty u-bolts
Set of 4 Fox Adventure series shocks

Kit Features
Upper control arms are boxed and fully welded
Maintains ride and handling characteristics with clearance for 35" tires
Allows for improve offroad performance with more droop travel
Ball joint cups are in the neutral position at 3” of lift
Level stance

35x12.50 tires on 20x9 wheels with 5-5.75” BS
285R60R  or 295/60R tires on 20x9 wheels with 5-6.18” BS

Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
