1994-99 Dodge Ram 2500 5" lift kit, FOX Adventure Series shocks
$1,134.02
Product No
D46FOX-ZN
FREE SHIPPING Lower 48 States
Important Notes
** Will not fit models built before February 9, 1994 due to track bar stud size.
** Steering stabilizer is required and sold separately.
** If equipped with rear top mounted overload springs 4 of u-bolt part ZONU4050 are typically required.
* If truck is equipped with rear brake proportioning valve, proportioning valve relocation bracket kit ZOND5509 is required.
* If your model has the factory front sway bar links mounted ABOVE the axle bracket, sway bar link kit ZOND5501 is required. If your model has the factory front sway bar links mounted BELOW the axle bracket, no additional sway bar link kit is required.
* If vehicle is equipped with a factory rear sway bar, optional rear sway bar link kit ZOND5508 is recommended.
* Models equipped with a 2 piece rear driveshaft and carrier bearing will require optional carrier bearing drop kit ZOND5505
** Steering stabilizer is required and sold separately.
** If equipped with rear top mounted overload springs 4 of u-bolt part ZONU4050 are typically required.
* If truck is equipped with rear brake proportioning valve, proportioning valve relocation bracket kit ZOND5509 is required.
* If your model has the factory front sway bar links mounted ABOVE the axle bracket, sway bar link kit ZOND5501 is required. If your model has the factory front sway bar links mounted BELOW the axle bracket, no additional sway bar link kit is required.
* If vehicle is equipped with a factory rear sway bar, optional rear sway bar link kit ZOND5508 is recommended.
* Models equipped with a 2 piece rear driveshaft and carrier bearing will require optional carrier bearing drop kit ZOND5505
Quick Overview
Time for a "make-over" to get the truck you've been wanting. Zone Offroad has developed a 5" lift kit for the Dodge Ram 2500 that includes the major suspension components to achieve your goal. Gain some respect as well as some height that allows installation of those 35" tires that will help get you through some pretty rough off-road terrain. This lift kit was engineered to make sure suspension components maintain the correct geometry for long time service.
Built specifically for Zone Offroad lift kits, the Fox Adventure Series shocks feature a 2” OD steel body with a 5/8” heat treated hard chrome plated shaft that provides a comfortable street ride and predictable offroad handling under a variety of conditions. The Internal floating piston is designed to separate the shock oil from the nitrogen gas chamber. This monotube design eliminates oil aeration to provide performance that is fade free for your specific vehicle. Included in the Zone lift kit for your Ram 2500 are the following:
View kit installation instructions
Built specifically for Zone Offroad lift kits, the Fox Adventure Series shocks feature a 2” OD steel body with a 5/8” heat treated hard chrome plated shaft that provides a comfortable street ride and predictable offroad handling under a variety of conditions. The Internal floating piston is designed to separate the shock oil from the nitrogen gas chamber. This monotube design eliminates oil aeration to provide performance that is fade free for your specific vehicle. Included in the Zone lift kit for your Ram 2500 are the following:

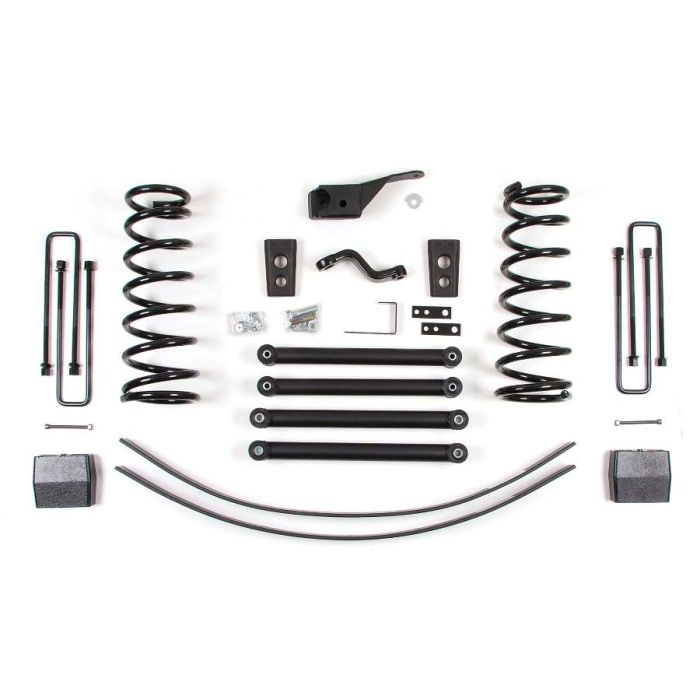

- Coil springs
- Heavy duty greasable control arms included
- Extended length urethane bump stops
- Track bar relocation to properly center your axle
- Pitman arm included to maintain steering geometry
- Track bar relocation brackets
- Bump stops
- Rear block kit (replaces factory block)
- Rear add-a-leafs
- 4 FOX 2.0 shocks
View kit installation instructions
Required and/or Related Items
-
$11.37
-
$35.69
-
$29.38
-
$50.94
-
$15.29
- Make: Dodge
- Model: Ram 2500
- Vehicle: 1994-99 Ram 2500 5" lift kit, FOX Adventure Series shocks
- Drive: 4WD
- Tire Size: 35x12.50
- Upsell: ZON3202, ZOND5501, ZONU4050, ZOND5509, ZOND5508, ZOND5505
Zone Offroad lift kit fits the following models:
1994 Ram 2500
1995 Ram 2500
1996 Ram 2500
1997 Ram 2500
1998 Ram 2500
1999 Ram 2500
1994 Ram 2500
1995 Ram 2500
1996 Ram 2500
1997 Ram 2500
1998 Ram 2500
1999 Ram 2500
