2014-18 4WD Ram 2500 5" radius arm, standard rate coil lift kit, V2 Monotube shocks

Rough Country has designed their 5" lift kit for the Ram 2500 with front standard rate coil springs for increased ground clearance, a level stance and to allow a set of larger tires to give your ride a new and more aggressive stance. To achieve the look and retain the performance, maintaining the factory suspension geometry as close to factory angles as possible is the key.

This Rough Country lift kit features ultra-durable radius arms that precisely fit directly into the factory mounts not only for ease of installation but to maintain a more factory-like angle. Clevite rubber bushings are used to maximum the absorption of any vibrations.

Included is a rear air bag spacer to provide rear lift. This works in conjunction with the factory air bag to provide rear lift. To determine actual rear ride height, a rear sensor arm relocation bracket is included that can modify how the sensor link speaks to the computer. This feature allows an adjustment of the rear height upo to 1" higher than the front by way of multiple mounting points spaced by 1/4-inch. Pick the mounting point you want for the rear ride height you prefer.

V2 Monotube shocks have a T6061 brushed aluminum body with black anodized accents that not only look great but dissipate heat faster than other materials. The lightning fast reaction with no cavitation is the result of an internal floating piston to separate the shock oil from the high-pressure nitrogen. This true performance shock is designed to be mounted body-up for a more interesting look.

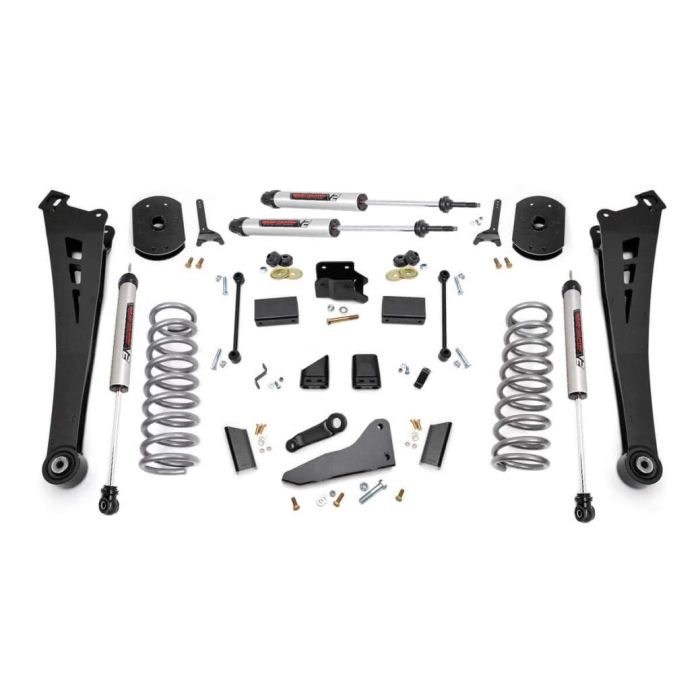

Kit Components
Standard rate coil springs
Rear spacers
Radius arms
Front and rear sway bar components
Track bar bracket front and rear
Pitman arm
Bump stop brackets
Ride height arms
Four V2 Monotube shock absorbers

Kit Features
Increased ground clearance
Maintains excellent ride quality
Limited Lifetime Warranty

View lift kit installation instructions
