2014-18 4WD Ram 2500 5.5" Radius Arm lift kit, Nitro shocks
Important Notes
** Vehicles with a two piece rear driveshaft and carrier bearing require a carrier bearing drop kit D5405 sold separately.
** Not designed for factory rear airbag suspension models.
** Also fits 6.4L Gas models.
** Will not fit Power Wagon models
Quick Overview
Good looks and high performance can be found in the Zone Offroad 5.5” Radius Arm lift kit for your Ram 2500. Replacement radius arms provide better handling characteristics on road and improved performance off-road. This is a substantial upgrade over the factory stamped arms and will also improve ground clearance not achieved by the drop bracket option. The arms bolt to the factory location and have extra-large, greaseable bushings to dampen road noise and vibrations. The axle mount is designed to retain the factory alignment cams for adjustability. By forming the arms inward, maximum tire clearance is achieved.

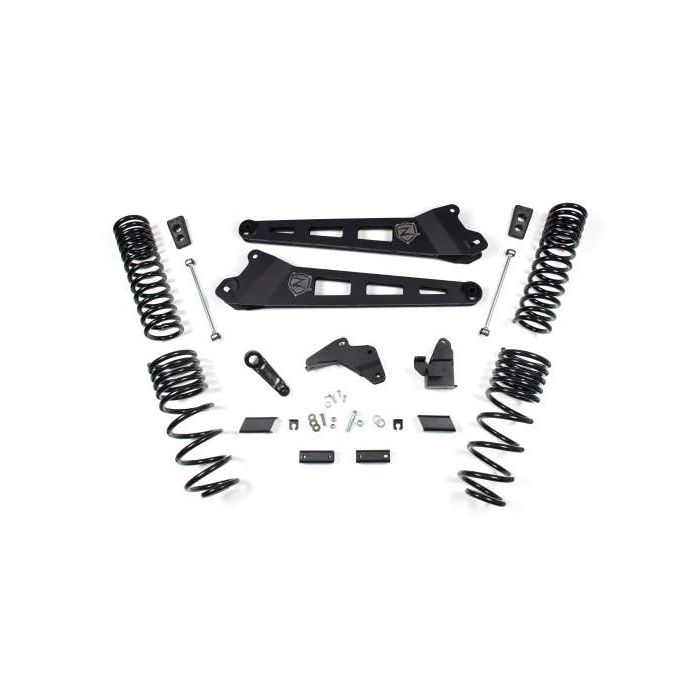

Included in this lift kit for your Ram 2500 are:
- Front and Rear Progressive rate coil springs
- Longer radius arms
- Forged pitman arm
- Front and rear track bar bracket to re-center the axle
- Polyurethane front bump stops
- Brake line relocation brackets
- Extended sway bar links
- Rear bump stop extensions
- 4 Nitro shocks (included but not shown)
Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
Required and/or Related Items
-
$109.94
-
$45.89
-
$321.29
-
$254.99
-
$49.94
- Make: Dodge
- Model: 2500
- Vehicle: 2014-18 Ram 2500 5.5" Radius Arm lift kit, Nitro shocks
- Drive: 4WD
- Tire Size: 35X12.50 on 17x9+ wheels, 4.5" BS or 37X12.50 on 17x9+ wheels, 5.625
- Upsell: ZOND5405, ZON7204, ZON7250, ZOND5623, ZOND5813
- Initialize: 1
2014 Ram 2500
2015 Ram 2500
2016 Ram 2500
2017 Ram 2500
2018 Ram 2500
