2009-13 4WD Dodge Ram 2500, 3500 6" lift kit, FOX Adventure Series shocks
$1,399.02
Product No
D37FOX-ZN
FREE SHIPPING Lower 48 States
Important Notes
* Works on 2013 2500 with 4 link front suspension only. Will not fit 1 Ton Trucks or Dually.
* Will work with Power Wagon models with the addition of sway bar link kit D5301. Power Wagon models came factory with a 2" taller ride height so net lift gain will be 4" over stock.
* Models with a 2-piece rear driveshaft may require rear carrier bearing kit ZOND5505.
* Gas models may require modification to the front exhaust crossover pipe on driver side when using the transfer case indexing ring
* If driveline vibration is present, some 6" kits may require the transfer case indexing kit (D5805). See installation instructions (step 17) for fitment details.
* Will work with Power Wagon models with the addition of sway bar link kit D5301. Power Wagon models came factory with a 2" taller ride height so net lift gain will be 4" over stock.
* Models with a 2-piece rear driveshaft may require rear carrier bearing kit ZOND5505.
* Gas models may require modification to the front exhaust crossover pipe on driver side when using the transfer case indexing ring
* If driveline vibration is present, some 6" kits may require the transfer case indexing kit (D5805). See installation instructions (step 17) for fitment details.
Quick Overview

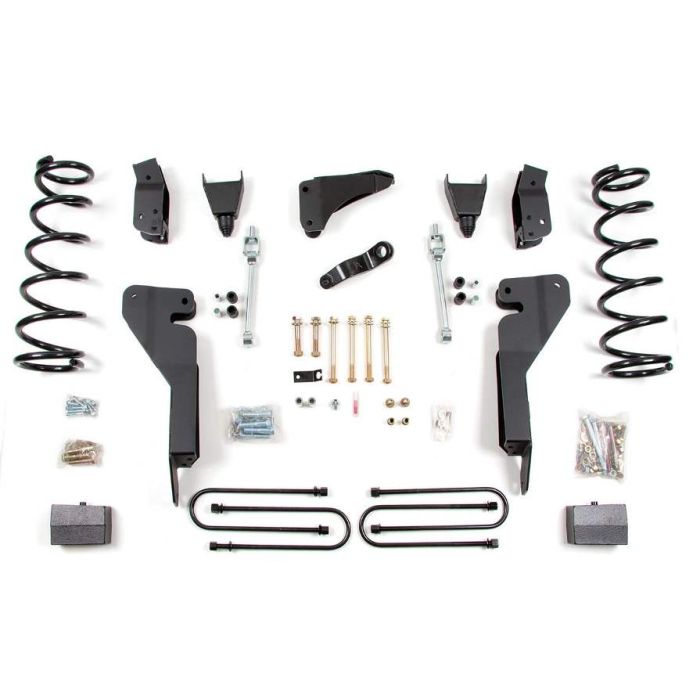

The 6" lift kit for the Dodge Ram 2500 and 3500 by Zone Offroad uses a unique control arm relocation design. By relocating the stock upper and lower arms, angles are relieved properly positioning the front axle and providing good caster and front pinion angle settings. The brackets are constructed of 1/4" steel and mount directly to stock locations. Drilling of a few new holes will be required for the extra support. No cutting of the frame or axle mounts is required. Stock alignment adjustability is retained. The stock control arm angles are maintained to provide a great ride, handling and control. Additionally included are front coil springs, dropped pitman arm, track bar relocation, sway bar relocation, bump stops and 4 FOX Adventure Series shocks. The rear lift utilizes a block kit with u-bolts.
Built specifically for Zone Offroad lift kits, the Fox Adventure Series shocks feature a 2” OD steel body with a 5/8” heat treated hard chrome plated shaft that provides a comfortable street ride and predictable offroad handling under a variety of conditions. The Internal floating piston is designed to separate the shock oil from the nitrogen gas chamber. This monotube design eliminates oil aeration to provide performance that is fade free for your specific vehicle.
Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
View kit installation instructions
Built specifically for Zone Offroad lift kits, the Fox Adventure Series shocks feature a 2” OD steel body with a 5/8” heat treated hard chrome plated shaft that provides a comfortable street ride and predictable offroad handling under a variety of conditions. The Internal floating piston is designed to separate the shock oil from the nitrogen gas chamber. This monotube design eliminates oil aeration to provide performance that is fade free for your specific vehicle.
Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
View kit installation instructions
Required and/or Related Items
-
$204.66
-
$38.29
-
$29.38
- Make: Dodge
- Model: 3500
- Vehicle: 2009-12 Ram 3500 6" lift kit, FOX Adventure Series shocks
- Drive: 4WD
- Tire Size: 37x12.50 on 17x9 rims,4.5- 5" BS
- Upsell: ZON3201, ZOND5505, ZOND5301, ZOND5805
Zone Offroad lift kit fits following models:
2009 Ram 2500, 3500, Mega Cab
2010 Ram 2500, 3500, Mega Cab
2011 Ram 2500, 3500, Mega Cab
2012 Ram 2500, 3500, Mega Cab
2013 Ram 2500, Mega Cab
2009 Ram 2500, 3500, Mega Cab
2010 Ram 2500, 3500, Mega Cab
2011 Ram 2500, 3500, Mega Cab
2012 Ram 2500, 3500, Mega Cab
2013 Ram 2500, Mega Cab
