2013-18 4WD Ram 3500 4" Radius Arm lift kit, Nitro shocks
Important Notes
** Vehicles with a two piece rear driveshaft and carrier bearing require a carrier bearing drop kit D4505 sold separately.
** Not designed for factory rear airbag suspension models.
** Also fits 6.4L Gas models.
Quick Overview
Good looks and high performance can be found in the Zone Offroad 4” Radius Arm lift kit for your Ram 3500. Replacement radius arms provide better handling characteristics on road and improved performance off-road. This is a substantial upgrade over the factory stamped arms and will also improve ground clearance not achieved by the drop bracket option. The arms bolt to the factory location and have extra-large, greaseable bushings to dampen road noise and vibrations. The axle mount is designed to retain the factory alignment cams for adjustability. By forming the arms inward, maximum tire clearance is achieved.

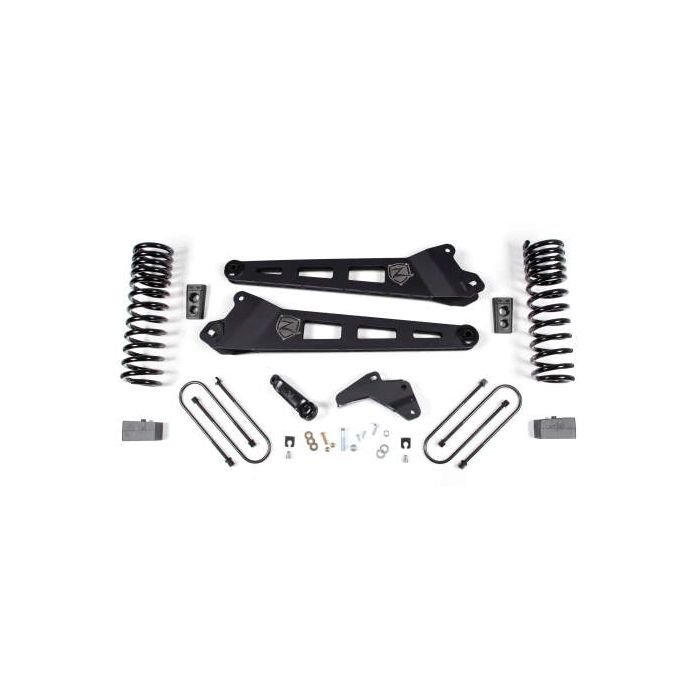

Included in this lift kit for your Ram 3500 are:
- Front Progressive rate coil springs
- Longer radius arms
- Forged pitman arm
- Front track bar bracket to re-center the axle
- Polyurethane front bump stops
- Brake line relocation brackets
- Rear block kit
- 4 Nitro shocks (Image shows black Nitro shocks. This kit includes white Hydro shocks)
Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
View kit installation instructionsRequired and/or Related Items
-
$254.99
-
$109.94
-
$45.89
-
$321.29
-
$49.94
- Make: Dodge
- Model: 3500
- Vehicle: 2013-18 Ram 3500 4" Radius Arm lift kit, Nitro shocks
- Drive: 4WD
- Tire Size: 35X12.50 on 17x9+ wheels, 4.5" BS or 37X12.50 on 17x9+ wheels, 5.625" BS
- Upsell: ZOND5405, ZON7204, ZON7250, ZOND5623, ZOND5813
- Initialize: 1
Zone Offroad 4" lift kit fits the following models:
2013 Ram 3500
2014 Ram 3500
2015 Ram 3500
2016 Ram 3500
2017 Ram 3500
2018 Ram 3500
