2020-22 4WD Ram 3500 Air Ride 5" radius arm lift kit, N3 Nitro shocks
Important Notes
* Requires removal of Transfer case for clocking ring install for correct front driveline geometry.
* Does NOT fit 'Power Wagon'
* Fits both Dual and Single rear wheel models
* Does NOT fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission.
* Rear wheels may require additional dually wheel spacers to run 12.50in wide tire
* Requires minor cutting.
*On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.
Quick Overview
Rough Country has designed their 5" lift kit for the new Ram 3500 Air Ride with the intention of maintaining the impressive factory specs and stepping up performance and durability. This results in an aggressive looking beast with a lush ride quality to make you the envy of all Ram owners.
To achieve the look and retain the ride quality, maintaining the factory suspension geometry as close to factory angles as possible is the key. This Rough Country lift kit features ultra-durable radius arms that precisely fit directly into the factory mounts not only for ease of installation but to maintain a more factory-like angle. Clevite rubber bushings are used to maximum the absorption of any vibrations.
For unparallel ride quality, a set front lifted coil springs are included. Track bar bracket, sway bar components, pitman arm and all other necessary hardware are included along with four N3 Nitro shocks specifically valved for this application.

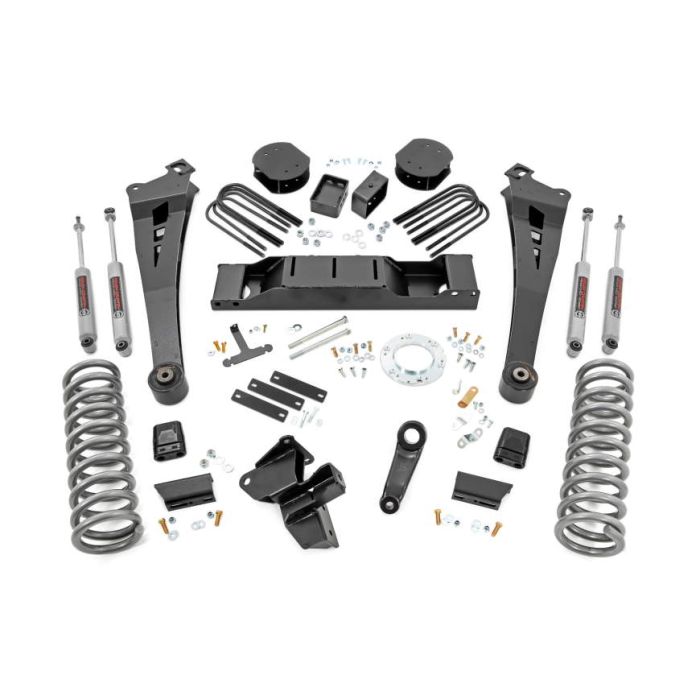

- Lifted Coil springs
- Beefed up Radius arms with Clevite bushings
- Front and rear Track Bar bracket
- Transmission crossmember
- Clocking ring
- Front Sway-bar brackets
- Pitman arm
- Carrier bearing shims
- Rear air bag spacers
- Rear Sway-bar links
- N3 Nitro shocks
- Lifetime Replacement Guarantee
View lift kit installation instructions
- Make: Dodge
- Model: Ram 3500
- Vehicle: 2020-22 Ram 3500 Air Ride 5" radius arm lift kit, N3 Nitro shocks
- Drive: 4WD
- Tire Size: 37x12.50 tires on 17-20x9 wheels with 5" BS
- Upsell: 8749430 HK
- Initialize: 1
Rough Country 5" lift kit fits the following models:
2020 Ram 3500 Air Ride
2021 Ram 3500 Air Ride
2022 Ram 3500 Air Ride
