2014 2WD Ford F150 6" strut lift kit, Nitro shocks
$1,242.64
Product No
F43N-ZN
FREE SHIPPING Lower 48 States
Important Notes
** Vehicles equipped with factory powersteps will require E-brake relocation bracket ZONF5608.
** Certain models with a 2-piece rear driveshaft may require carrier bearing shim kit ZOND5405.
** AWD models will require front driveshaft modification
** Although rare, a 3/4" rear driveshaft extension may be required.
** Certain models with a 2-piece rear driveshaft may require carrier bearing shim kit ZOND5405.
** AWD models will require front driveshaft modification
** Although rare, a 3/4" rear driveshaft extension may be required.
Quick Overview

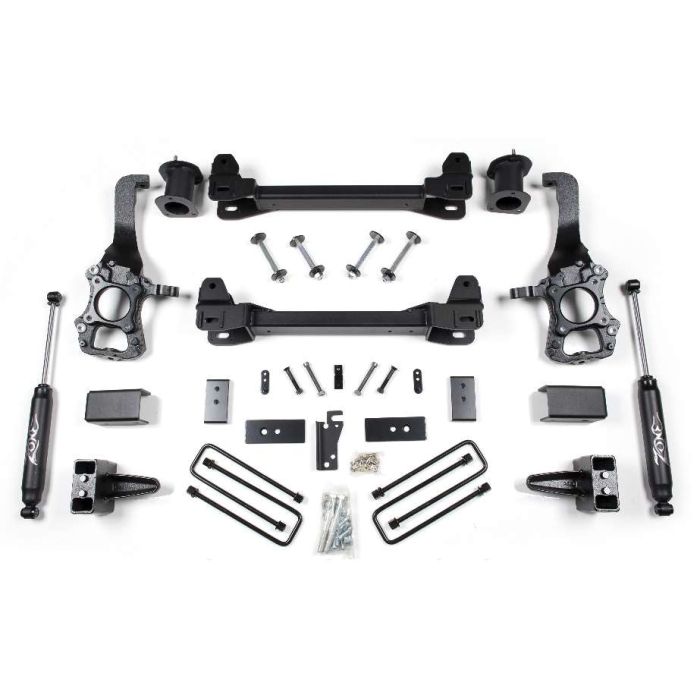

The Zone Offroad 6" lift kit for the Ford F150 includes new coilover struts custom valved for larger tires, improved ride and optimal handling. The fully cast, CNC machined and resonant frequency tested knuckles ensure proper steering geometry while reducing installation time. These correct the tie rod and ball joint geometry with no track width change. This kit also features heavy 1/4" thick main crossmembers and a differential skid plate. The rear is lifted with a 4.5" dual pin block and u-bolt kit that offsets the axle closer to the center of the wheel. Rear Nitro shocks are included.
This lift will not work with 17" wheels. If using 18x9 wheels with 5.5" BS, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
35x13.50 tires on 18x9 wheels with 4.5"-5" back spacing
37x12.50 tires on 18x9 wheels with 5" back spacing
37x12.50 tires on 20x9 wheels with 5"-5.5" back spacing
Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
View kit installation instructions
This lift will not work with 17" wheels. If using 18x9 wheels with 5.5" BS, fit the wheels before mounting to check for proper tie rod clearance. Wheel manufacturing variances may affect this clearance.
35x13.50 tires on 18x9 wheels with 4.5"-5" back spacing
37x12.50 tires on 18x9 wheels with 5" back spacing
37x12.50 tires on 20x9 wheels with 5"-5.5" back spacing
Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.
View kit installation instructions
Required and/or Related Items
-
$71.34
-
$45.89
-
$13.51
- Make: Ford
- Model: F150
- Vehicle: 2014 F150 6" strut lift kit, Nitro shocks
- Drive: 2WD
- Upsell: ZONF5601, ZONF5608, ZOND5405
Zone Offroad 6" lift kit fits following models:
2014 Ford F150
2014 Ford F150
