2015-20 4WD Ford F150 4" lift kit, Nitro shocks
Important Notes
Requires frame bracket modification 18" wheels should be test fit to ensure proper tie rod end clearance
Wheel profiles can vary between manufacturers
Stock 17"/18" wheels cannot be reinstalled
Stock 20" wheels can be used with up to a 305/60R20 tire
Vehicles equipped with a 2 piece rear driveshaft may require carrier bearing drop kit D5405
Depending on wheel selection, minor trimming may be required to fit tire
Models equipped with Auto 4WD may require front driveshaft replacement
Quick Overview
If running 35" tires is your goal, install the 4" lift kit by Zone Offroad for your Ford F150. Massive steering knuckles and lower control arm crossmembers along with strut spacers do the heavy lifting. CV angles are retained with differential relocation brackets that keep the front driveshaft where it belongs. Alignment is achieved with new eccentric cam bolts.

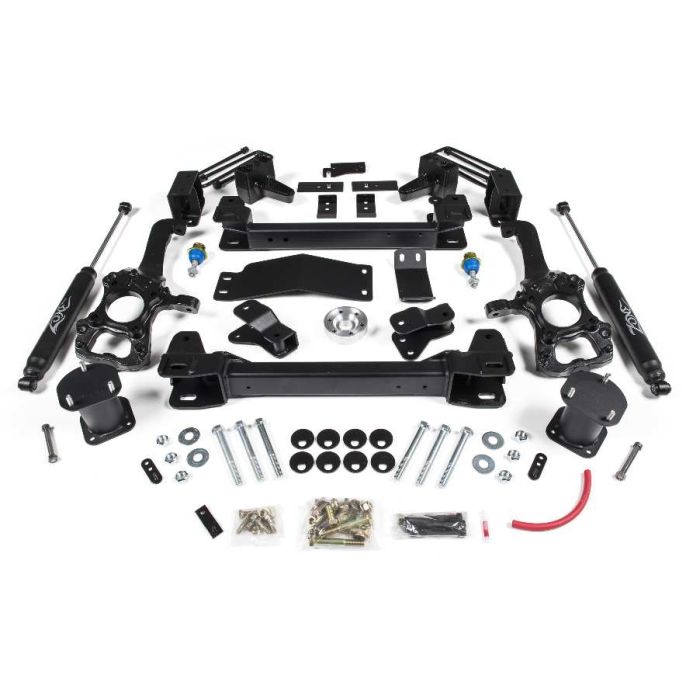

Kit Components
Front and rear heavy duty 1-piece lower control arm crossmembers
Massive ductile cast iron steering knuckles
Differential relocation bracket
Differential skid plate
1/4" thickBolt-on strut spacers
Eccentric cam bolts
Sway bar relocation brackets
4" Rear block kit with integrated bump stop wings
Rear Nitro shocks
View kit installation instructions
Kit Features
Limited Lifetime Warranty
Level Stance
High strength crossmembers to correct lower control arm positioning
Factory ride
No welding required
Required and/or Related Items
-
$45.89
- Make: Ford
- Model: F150
- Vehicle: 2015-20 F150 4" lift kit, Nitro shocks
- Drive: 4WD
- Tire Size: 35x12.50 tires on 18 or 20x9 wheels, 5"-5.5" back spacing
- Upsell: ZOND5405
- Initialize: 1
2015 Ford F150
2016 Ford F150
2017 Ford F150
2018 Ford F150
2019 Ford F150
2020 Ford F150
