2021-22 4WD Ford F150 Upper Control Arms SST 3.5" lift kit

ReadyLift has engineered this 3.5" SST Upper Control Arm lift kit for your Ford F150 to work seamlessly with auto-leveling headlamps and CCD. Included are tubular upper control arms that feature heavy duty ball joints with Terrain Control Technology pivot bushings and alignment cam nuts. Installation requires no cutting or welding of OEM components. Incuded are rear shock extensions that allow the factory shocks to be retained. The factory ride is maintained and this lift allows up to 35" tires.

Note that the lift amount may vary between 3.25" and 3.5" of front lift depending on the vehicle. Rear lift is equal to approximately 1.25".

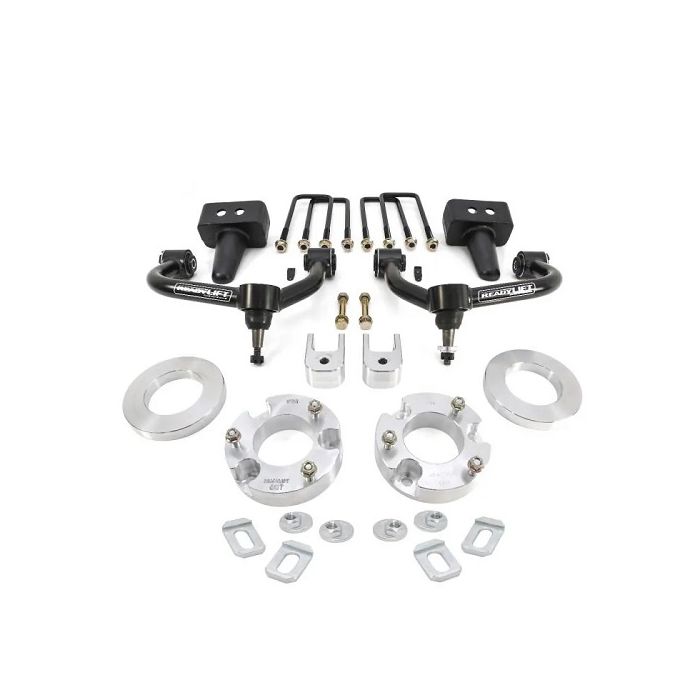

Kit Components
Front strut extensions and preload spacers
Strong tubular steel Control Arms with heavy-duty ball joints.
4 Alignment cam plates
Rear leaf sensor spacer
2.5" fabricated steel rear blocks for correct driveshaft angle. Rear lift is equal to approximately 1.25"
Rear u-bolts
Rear shock extensions
Carrier bearing drop

Kit Features
Clearance for up to a 35” tire
Upper Control arms correct the ball joint angles
CNC-machined billet Aluminum lift components
Limited Lifetime Warranty

Allows the following tire/wheel combo
35x11.50 or 295/60-20 Max tire size on a 9" wide wheel with +18 offset
35"x12.5" wheel 20"x9" with 0 offset Some minor trimming may be necessary depending on the tire design
Factory 20x8.5 +44 offset wheels can be used with tires that are narrower than 11.5"
Every tire and wheel combination should be test fit prior to installation.
Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience
