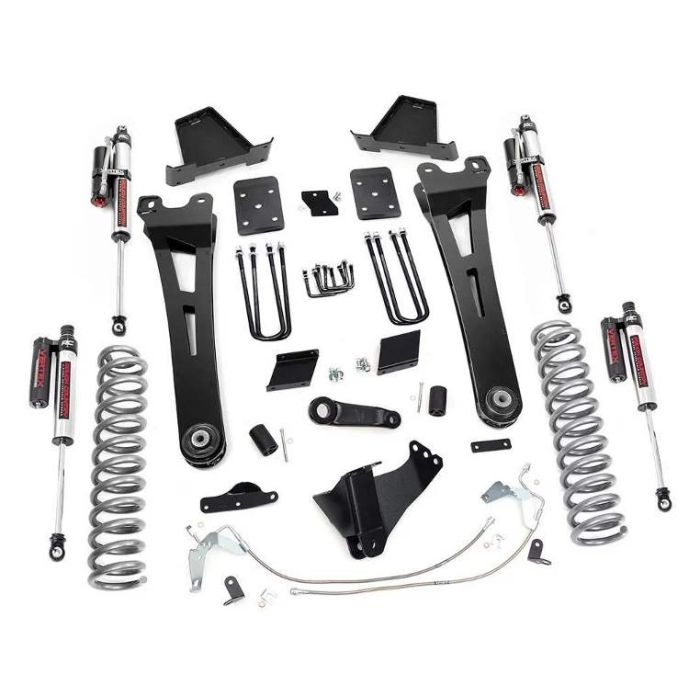

2015-16 4WD Ford F250 Super Duty without overloads 6" radius arm lift kit, Vertex Reservoir shocks

For a more aggressive look, install Rough Country's 6" radius arm lift kit on our Ford F250. This lift kit features beefy replacement radius arms that bolt directly into the factory mounts for a more factory-like angle. Weighing 27 lbs each they dwarf the stock arms. The Clevite rubber bushings are more durable than stock and provide maximum vibration absorption. By keeping the suspension geometry as close to factory angles as possible, the ride quality is preserved. This results in a balanced ride both on and off road. Installation is lightning fast with a 100% bolt-on process.

The Vertex shocks are a nitrogen-charged monotube design with an external reservoir with steel braided reservoir line for increased oil capacity and damping. This high-end shock features a 2.5” piston with a high flow 22mm chrome hardened piston rod that offers 56% more fluid capacity than the average 2.0 reservoir shock. The Vertex shocks have a 3-stage, fortified seal system with a steel body and CNC machined Billet aluminum accents for durability and great looks.

• Engine specific lifted coil springs
• Radius arms
• Sway-bar extensions
• Adjustable alignment cam
• Track bar drop bracket
• Stabilizer relocation bracket
• Pitman arm
• Stainless steel front brake lines
• Rear brake line brackets
• Bumpstop spacers
• Fabricated lift blocks
• U-bolts and Hardware
• Four Vertex Reservoir shocks
• Lifetime Replacement Warranty

View lift kit installation instructions
