2011-16 4WD Ford F250, F350 Super Duty 4" radius arm lift kit, King Coilovers & King Shocks
$5,699.99
Product No
K987KG-SL
FREE SHIPPING Lower 48 States
Important Notes
* Vehicles with a 2-piece rear driveshaft may require carrier bearing drop 9649.
* This lift kit is packaged with rear blocks and u-bolts that are configured for models with the factory 1-7/8" blocks WITHOUT top mount overloads. If your Ford is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required. Models equipped with the 1-7/8" blocks and top over loads, require part # 11724. If equipped with the 3.71” block and the top mount overloads, part # 11734 is required.
* Minor cutting/drilling required
* This lift kit is packaged with rear blocks and u-bolts that are configured for models with the factory 1-7/8" blocks WITHOUT top mount overloads. If your Ford is equipped with the factory 3.71" block or top mounted overloads, a longer rear u-bolt will be required. Models equipped with the 1-7/8" blocks and top over loads, require part # 11724. If equipped with the 3.71” block and the top mount overloads, part # 11734 is required.
* Minor cutting/drilling required
Quick Overview
For the absolutely best driving experience in a lifted Ford F250 or F350 Super Duty, Superlift offers their 4" King Coilover conversion system that also features rear King shocks. All 4 shocks have external reservoirs that adjust with just a simple twist of a knob. Dial in a Super Soft or Super Firm ride to perfectly suit your needs and driving conditions. The Superlift edition of the King coilovers come completely assembled to bolt right in. No spring compressor required.
Using OEM CAD models with the latest 3D design software, Superlift engineered a set of massive, high clearance tubular radius arms that bolt into the factory mounts. To reduce noise, vibration and harshness, giant press fit OEM Clevite bushings are used. They feature a flat jack plate along with alignment cam bolts offset to the inside to allow maximum turning radius and tire clearance.
View kit installation instructions
Using OEM CAD models with the latest 3D design software, Superlift engineered a set of massive, high clearance tubular radius arms that bolt into the factory mounts. To reduce noise, vibration and harshness, giant press fit OEM Clevite bushings are used. They feature a flat jack plate along with alignment cam bolts offset to the inside to allow maximum turning radius and tire clearance.

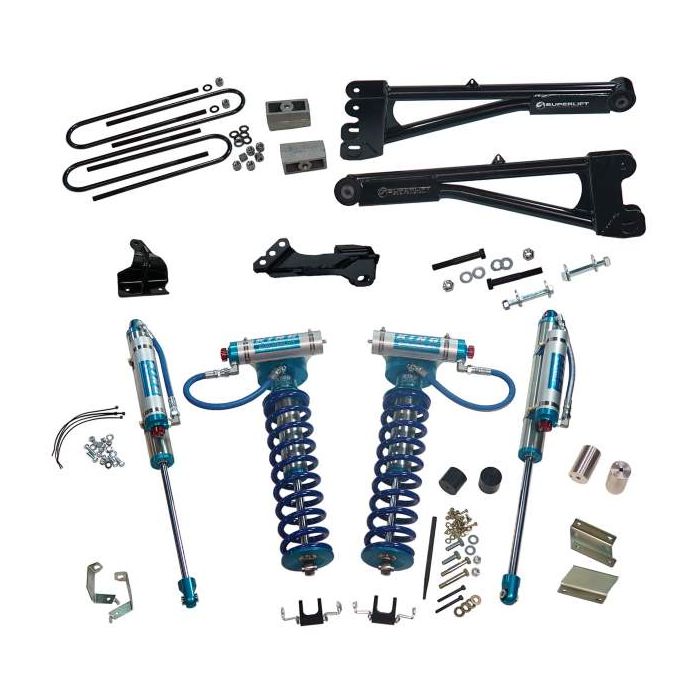

- Front King Coilovers with Reservoir
- Rear King shocks with Reservoir
- Tubular radius arms
- Track bar relocation bracket
- Alignment cam bolts
- Front Sway bar correction
- Bump Stop extensions
- Brake Hose relocation brackets
- 2.5" Rear block kit
- Limited Lifetime Warranty
- 60 Day Satisfaction Guarantee
View kit installation instructions
Required and/or Related Items
-
$89.99
-
$59.99
-
$279.99
-
$89.99
-
$429.99
- Make: Ford
- Model: F350
- Vehicle: 2011-16 F350 4" radius arm lift kit, King Coilovers & Shocks
- Drive: 4WD
- Tire Size: 35x12.5 on 9-10X17 wide wheel, 4.5" - 5.5" BS
- Upsell: F5203 SL, 92694 SL, 92730 SL, 9649 SL, 11724 SL, 11734 SL
Superlift lift kit fits the following models:
2011 F250 Super Duty
2012 F250 Super Duty
2013 F250 Super Duty
2014 F250 Super Duty
2015 F250 Super Duty
2016 F250 Super Duty
2011 F250 Super Duty
2012 F250 Super Duty
2013 F250 Super Duty
2014 F250 Super Duty
2015 F250 Super Duty
2016 F250 Super Duty
2011 F350 Super Duty
2012 F350 Super Duty
2013 F350 Super Duty
2014 F350 Super Duty
2015 F350 Super Duty
2016 F350 Super Duty
