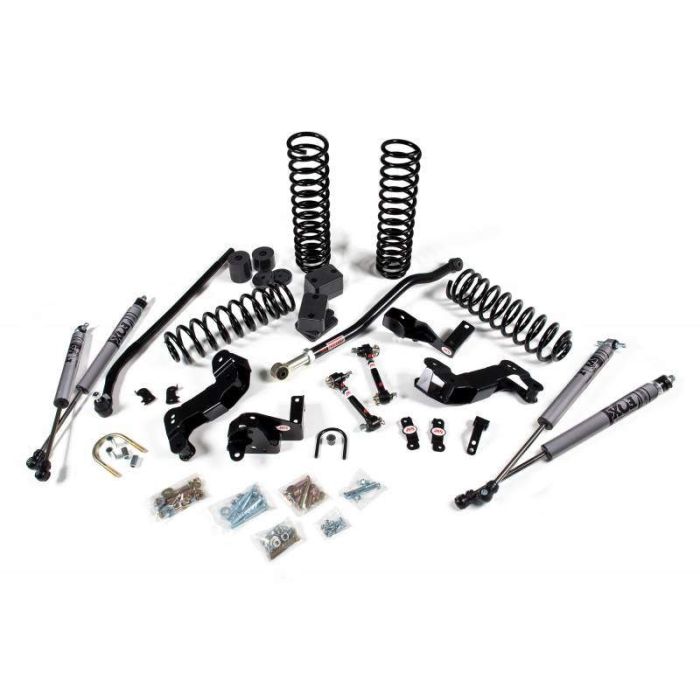

2007-18 Jeep Wrangler JK Unlimited 3.5" J KONNECT lift kit, Fox Adventure Series shocks

If you're looking for top of the line products for your Jeep Wrangler JK Unlimited and outstanding performance, consider the J KONNECT 3.5" lift kit made by JKS Manufacturing. This lift kit is designed to perform equally on-road with equal off-road capability. This system improves strength and performance with front and rear fixed length J-Link lower control arms along with a drag link flip kit and track bar braces. These lower control arms add front caster and rear wheelbase. Built using 2” x .250-wall DOM tubing and offering better NVH isolation with large factory style rubber bushings at both ends, this is a serious upgrade over factory components. A drag link flip kit is also included to flatten the steering angle to mimic factory angles. This combination of components results in improved off-road handling without compromising on-road handling needs.

The JSPEC dual rated coil springs are designed to provide the best ride and performance in any situation – street riding, trailing, rock crawling, loaded down or running light. The Fox 2.0 Adventure Series shocks are well known for high performance due to the internal floating piston design that prevents fade. These Fox shocks are a perfect match for these high performance coil springs.

The JKS adjustable track bar is vastly superior to the factory track bar, dwarfing it in size and performance. It is adjustable to compensate for the lifted coil springs and includes factory type rubber bushing. Specs include 1-1/4” threaded adjustable end for fine tuning and superior strength that is combined with the 1-1/2” x 3/8” wall DOM tube, CNC formed track bar. This option is far superior to track bar relocation brackets for greater handling and to keep bump steer to a minimum.

JKS was the originator for the sway bar disconnect. These Quicker Disconnects have adjustable lengths, include the JKS poly-flex ball, high mis-alignment ends, stainless steel mounting studs and are greasable. For Rubicon owners, hardware is included to bolt the Quicker Disconnect links to the axle and sway bar, thereby eliminating the disconnecting pins while keeping the other benefits of the Rubicon disconnecting sway bar.

JKS does not consider brake line relocation as an option and includes brackets in this kit. These brackets are designed specifically to work with the Fox shock lengths with just enough length at full axle droop and minimal modification to the factory routing.

JKS includes their 3/16” heavy duty steel rear track bar bracket that will relocate the rear track bar and brace it directly to the axle tube thereby reinforcing the factory bracket. Also included are front 2-3/4” billet aluminum and rear steel bump stop spacers that fasten directly to the axle to provide safe compression limits for both the coil springs and Fox 2.0 shocks.

• Front and rear dual rate coils springs
• Front andRear J-Link Lower Control Arms
• Heavy Duty Drag Link Flip Kit w/ Track Bar Bracket
• Fox 2.0 Adventure Series front and rear shocks
• JKS front adjustable track bar
• Front Caster Cam Locks to correct front end caster once lifted
• JKS front sway bar quicker disconnects
• Front and rear brake line relocation
• Front and Rear Track Bar Support Braces
• Rear track bar bracket
• Front and rear bump stop extensions

Covered by the 560plus Factory Protection Plus Program for vehicles less than 5 years old from the date of manufacture and the mileage is less than 60,000 miles. Click here for details.

Wrangler JK Instructions
