1988-98 2WD Chevy, GMC Standard Cab Pickup 1500 3"-6" lift kit, Bilstein shocks
$1,868.00
Product No
10-41288-RC
FREE SHIPPING Lower 48 States
Important Notes
* Also fits 1999 Old Body style models.
* System will NOT work on 88-91 Light Duty vehicles with standard brake system (smaller rotor 11.57” x 1”). Must use 1992 or later braking system. Call for details.
* Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized GMC/Chevy Dealer
* Must enlarge lower control arm sway bar end link mounting hole to 3/4”
* Will not work on vehicles equipped with rear steering
* System will NOT work on 88-91 Light Duty vehicles with standard brake system (smaller rotor 11.57” x 1”). Must use 1992 or later braking system. Call for details.
* Recalibration of the speedometer, ABS and stability control systems (if applicable) will be required by an authorized GMC/Chevy Dealer
* Must enlarge lower control arm sway bar end link mounting hole to 3/4”
* Will not work on vehicles equipped with rear steering
Quick Overview

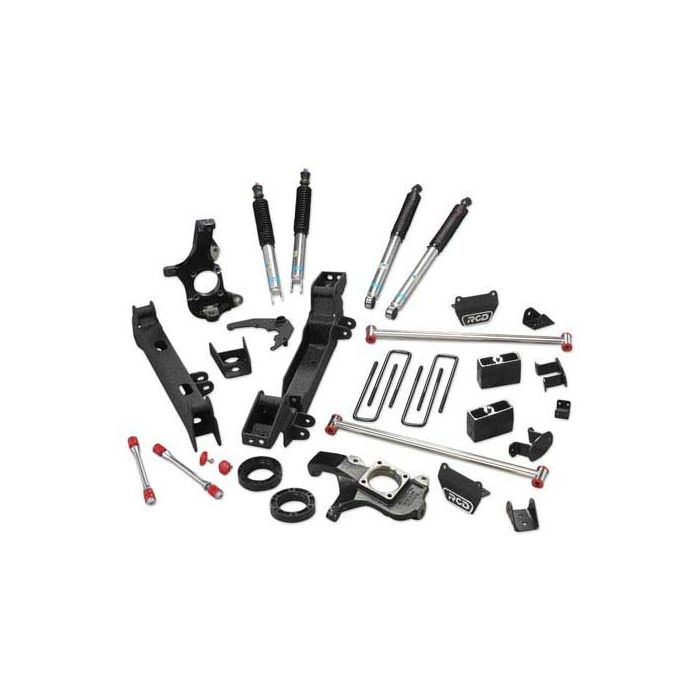

The time has come to bring your older model truck to the shop and give it a new lease on life! This innovative 3-6" lift kit for the Chevy, GMC 1500 Standard Cab pickup by RCD was designed using their industry leading sub-frame and spindle technology. This design capitalizes on the GM platform resulting in a high-quality product to impress even the most discerning customer. No driveshaft modifications are necessary. RCD also uses their “Gator Black” polyurethane powder coat finish to keep the kit looking good for years to come. Included in the RCD lift kit for the Chevy, GMC 1500 pickup are:
Max Tire Size: 33" x 12.5" w/ no modifications necessary.
35" & larger x 12.5" require minor fender and/or bumper trimming.
Max Backspace: 16" x 8" -4.5" backspacing 16.5" & larger x 8" - 4.75" backspacing
- CNC machined replacement cast iron steering knuckles
- Front & Rear Crossmembers
- Front Spindles
- Sway Bar Extensions
- Rear coil spring
- Lateral Compression Struts
- Strut Mount Bracket
- 3” Rear Tapered Block Kit
- Brake Line Kit
- All Necessary Hardware
- Bilstein 5100 Series Shocks
- Installation Instructions
Max Tire Size: 33" x 12.5" w/ no modifications necessary.
35" & larger x 12.5" require minor fender and/or bumper trimming.
Max Backspace: 16" x 8" -4.5" backspacing 16.5" & larger x 8" - 4.75" backspacing
Required and/or Related Items
-
$90.00
- Make: Chevrolet, GMC
- Model: 1500
- Vehicle: 1988-98 Chevy, GMC Standard Cab Pickup 1500 3"-6" lift kit, Bilstein shocks
- Drive: 2WD
- Comments:
RCD lift kit fits the following models:
1988 Chevy Pickup 1500
1989 Chevy Pickup 1500
1990 Chevy Pickup 1500
1991 Chevy Pickup 1500
1992 Chevy Pickup 1500
1993 Chevy Pickup 1500
1994 Chevy Pickup 1500
1995 Chevy Pickup 1500
1996 Chevy Pickup 1500
1997 Chevy Pickup 1500
1998 Chevy Pickup 1500
1988 GMC Pickup 1500
1989 GMC Pickup 1500
1990 GMC Pickup 1500
1991 GMC Pickup 1500
1992 GMC Pickup 1500
1993 GMC Pickup 1500
1994 GMC Pickup 1500
1995 GMC Pickup 1500
1996 GMC Pickup 1500
1997 GMC Pickup 1500
1998 GMC Pickup 1500
