Fabtech K1071 Chevy Silverado, GMC Sierra 1500 lift kit

Be the first to review this product

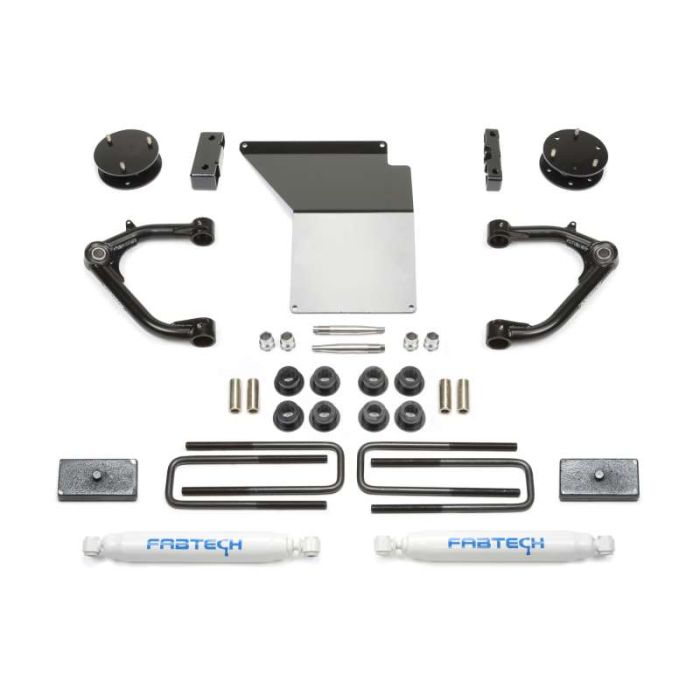

2014-18 2&4WD Chevy Silverado, GMC Sierra 1500 (Aluminum, Stamped Steel) 4" Uniball Upper Control Arm lift kit, Performance shocks

Product No: K1071 FT

Availability: In stock

$1,015.88 To see product price, add this item to your cart. You can always remove it later. What's this?
FREE SHIPPING Lower 48 States

Important Notes

* Does not fit models with AWD or AutoRide.
* Does not fit 2014 models with forged steel control arms.
* Cannot use OEM tires & wheels.

Quick Overview

The Fabtech 4" lift kit for the Chevy Silverado and GMC Sierra 1500 retains the factory front Coilover shocks with steel spacers that help keep the stock ride. To keep the CV angles proper, the front differential is relocated while a 1/4" thick steel skid plate provides additional protection of the differential against road obstacles. The Fabtech replacement arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs to allow unrestricted movement thru the travel range. These arms are the best on the market for aggressive offroad driving in harsh conditions. A 1.5" rear block kit and rear Performance shocks complete this package.

Your vehicle will have increased ground clearance, extended range upper ball joints, extended fender clearance compared to a leveling kit for 33" tall tires. Installation can be reversed in the event you should want to.

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. Details

33/12.50R17 tire w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming
275/65R18 tire w/ 18x8 wheels w/ 4 1/2” BS w/ minor trimming
295/55R20 tire w/ 20x9 wheels w/ 5” BS w/ minor trimming

View kit installation instructions

    • Make: Chevrolet,GMC
    • Model: 1500
    • Vehicle: 2014-18 Silverado, Sierra 1500 (Aluminum, Stamped Steel) 4" Uniball Upper Control Arm lift kit, Performance shocks
    • 2or4: 4WD


Fabtech 4" Uniball upper control arms lift kit fits following models:
2014 Silverado, Sierra 1500
2015 Silverado, Sierra 1500
2016 Silverado, Sierra 1500
2017 Silverado, Sierra 1500
2018 Silverado, Sierra 1500
