2022-23 4WD Chevy Silverado, GMC Sierra 1500 (4 cyl Gas) 6" Dirt Logic 2.5 Coilover lift kit, Dirt Logic 2.25 shocks

The IFS suspension design for the Silverado and Sierra 1500 has a number of features that make this Fabtech lift kit the one to choose. Expect improved on and off-road driving with zero bump steer that reduces driver fatigue. A clean appearance is achieved by keeping the tires under the fenders and near stock track width with Fabtech's proprietary steering knuckle geometry. Tight spots can be maneuvered easily with lock to lock turning radius. The crossmembers are 1/4" thick steel with OE style alignment cam pins that use the factory cams for easy adjustment. High speed vibration is eliminated with the triple front differential mounts that reposition the differential. The 6" of lift is provided by Dirt Logic 2.50 Coilovers for outstanding ride quality. This system is designed for aggressive offroad use without sacrificing road feel. The rear Dirt Logic 2.25 shocks offer a balanced ride by aiding in damping. Included in the Silverado, Sierra 1500 lift are:

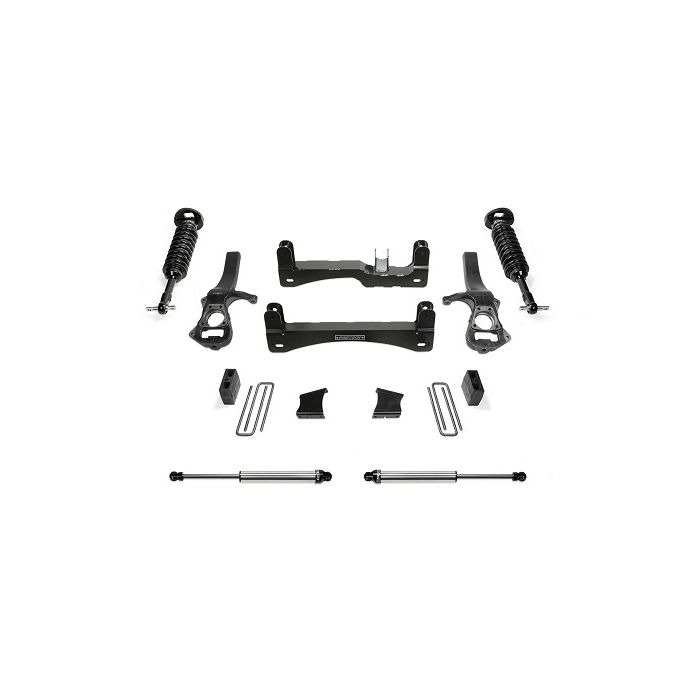

Kit Components
1/4" thick steel lower control arm Crossmembers - welded box design
Extended length ductile iron Steering Knuckles
Oversized tie rods
Dirt Logic 2.5 coilovers
Front differential Skid Plate - 1/4" thick steel
Triple Differential Mounts
Front sway bar drop brackets - 1/4" thick steel
Billet rear bump stop spacers
5" steel rear block kit
Rear Dirt Logic 2.25 Shocks

Kit Features
Near stock track width
Increased ground clearance
Lifetime Warranty
Excellent turning radius
Free 5 year 60,000 mile Powertrain Warranty

Tire Size –
35/12.50R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming Tire Size 295/70R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming Tire Size
35/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming Tire Size
295/65R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
