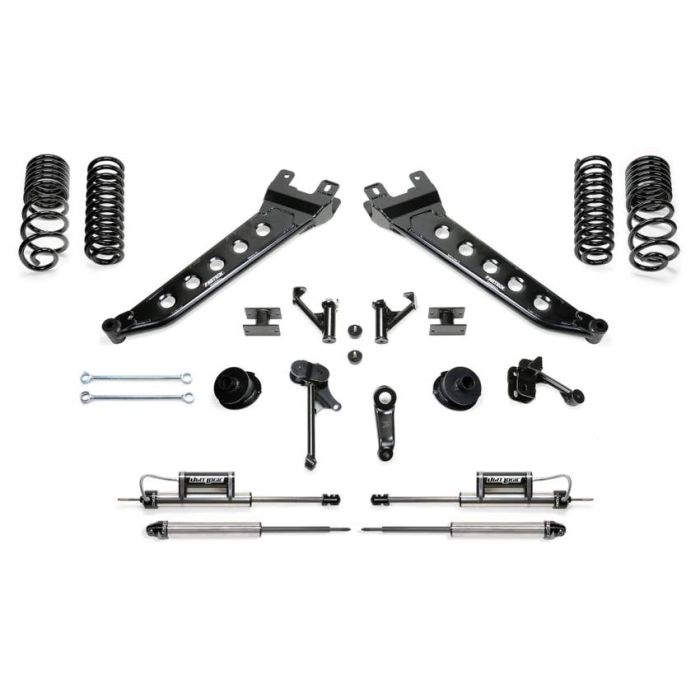

2014-18 4WD Ram 2500 5" Radius Arm coil lift kit, Dirt Logic Shocks

Improve the ride quality of your Dodge Ram 2500 with this 5” lift kit by Fabtech. The stiff riding factory front coil springs have a bowed style that tend to over-react to varying road conditions. Fabtech has designed straight front coil springs with a lower spring rate to install along with a patent pending angled lower mount. This combination gives your truck a much smoother ride without losing any factory carrying capacity. This design is unique to Fabtech coil spring lift kits.

Fabtech also includes the replacement rear coil springs with a dual stage design. When unloaded, your truck has a supple ride quality while the second stage allows for handling of factory capacity loads – giving you the best of both worlds.

The replacement tubular radius arms feature the Fabtech exclusive dimple die side plates that provide increased caster plus additional strength. Heavy duty front and rear track bar drop brackets center the axles under the truck. A unique Fabtech feature for this lift kit are the steel front bump stop extensions. Unlike urethane, these steel extensions will not blow out so there's no chance of spring or shock damage. Four Fabtech Dirt Logic shocks are also included.

Tire - 37x12.50/R17 Wheel - 17x9 w/5" BS w/minor trimming
Tire - 37x12.50/R18 Wheel - 18x9 w/5" BS w/minor trimming
Tire - 37x13.50/R20 Wheel - 20x9.5 w/5" BS w/minor trimming
Tire - 37x13.50/R22 Wheel - 22x11 w/5" BS w/minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details

View kit installation instructions
