2019-22 4WD Ram 2500 5" Radius Arm coil lift kit, Performance Shocks

Improve the ride quality of your Dodge Ram 2500 with this 5” lift kit by Fabtech. The stiff riding factory front coil springs have a bowed style that tend to over-react to varying road conditions. Fabtech has designed straight front coil springs with a lower spring rate to install along with a patent pending angled lower mount. This combination gives your truck a much smoother ride without losing any factory carrying capacity. This design is unique to Fabtech coil spring lift kits. Fabtech also includes the replacement rear coil springs with a dual stage design. When unloaded, your truck has a supple ride quality while the second stage allows for handling of factory capacity loads – giving you the best of both worlds. The replacement tubular radius arms feature the Fabtech exclusive dimple die side plates that provide increased caster plus additional strength. Heavy duty 1/4" thick steel front and rear track bar drop brackets center the axles under the truck. A unique Fabtech feature for this lift kit are the steel front bump stop extensions. Unlike urethane, these steel extensions will not blow out so there's no chance of spring or shock damage. Four Fabtech Performance shocks are also included.

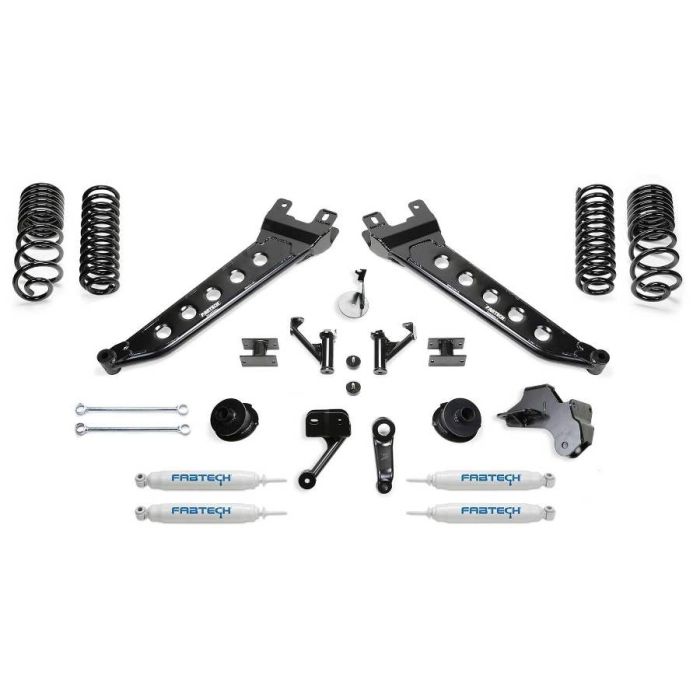

Kit Components
Front and rear coil springs
Tubular radius arms
Dropped pitman arm
Front and rear track  bar brackets
Extended sway bar links
Four Performance series shocks

Kit Features
Radius Arms providing additional strength and increased caster
Front straight Coil Springs with Fabtech’s patented angled mounts for smooth ride
Heavy duty Track Bar drop brackets center axles under vehicle for proper tracking
Dual rate rear coil springs for factory load capacity and a smooth ride
5 year 60,000 mile Powertrain warranty

37x12.50/R17 Wheel - 17x9 w/5" BS w/minor trimming
37x13.50/R18 Wheel - 18x9 w/5" BS w/minor trimming
37x13.50/R20 Wheel - 20x9.5 w/5" BS w/minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty
