2021-Up 4WD Ford Bronco Sasquatch 3" Aluminum UCA Coilover Stage 3 lift kit

This ICON 3" coilover upper control arm lift kit for the Ford Bronco with the Sasquatch package features billet Aluminum upper control arms that allow caster and camber adjustment to be made while installed on your Bronco. These control arms feature the patented Delta Joint PRO that allow up to 90 degrees of movement to accommodate the amount of lift provided by the coilovers.

The coilover internal reservoir front and rear shocks are custom valved to provide superior damping and vehicle control. These shocks yield the maximum travel possible for both on and off-road suspension performance and superior ride quality. The rear shocks are oriented shaft-up with unique triple-rate coil springs for the most rear suspension travel and best ride quality possible.

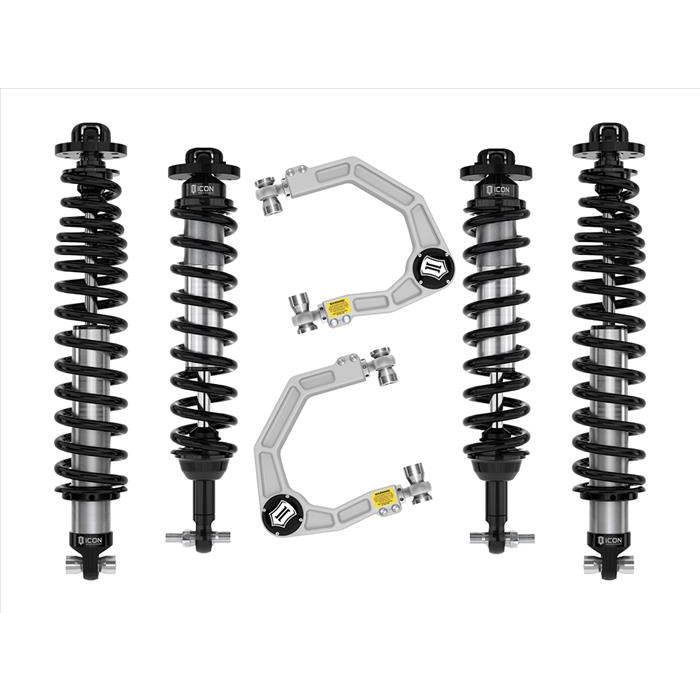

Kit Components
Front and rear custom valved coilovers
Billet aluminum upper control arms
Detailed instructions

Kit Features
Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door non-Sasquatch Broncos
PTFE lined spherical bearings and application specific mounting hardware
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
ICON engineered coil springs featuring a unique triple rate rear coil design
High strength alloy CNC machined lower bar pins
Tubular UCAs for added strength durability and alignment correction
UCAs feature the patented Delta Joint Pro with 90 degrees of total articulation
100% Bolt-on system - no drilling cutting or welding necessary for install
Limited Lifetime Warranty

Front Coilover installation instructions
Rear Coilover installation instructions
Control Arm installation instructions
