2009-13 4WD Ford F150 6" GEN II lift kit, Dirt Logic 2.5 Coilover w/ Reservoir, Dirt Logic shocks

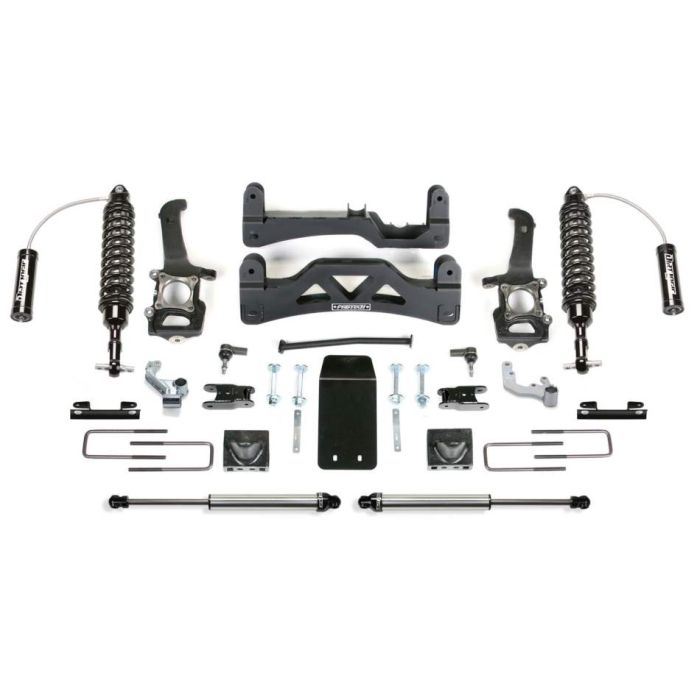

The Fabtech 6" GEN II Performance lift kit for your Ford F150 utilizes the proven design for the 2014 F150 for an easier install at a more affordable price. For aggressive off-road driving, this lift kit features Dirt Logic 2.5 Coilovers with Reservoir with Eibach coil springs in the front. The Fabtech arched lower control arm crossmembers constructed of 1/4" thick steel, with integrated differential skid plate to provide strength and rigidity to the front frame and suspension.

Steering knuckles are built with the finest American made ductile iron and are designed to allow use of an 18'', 20" or 22" diameter wheels. Also included are sway bar brackets, a rear block and u-bolt kit along with rear Dirt Logic 2.25 shocks.

Tire - 325/65R18 Wheel - 18x9 w/ 5” BS w/minor trimming
Tire - 35/13.50R18 Wheel - 18x9 w/ 5” BS w/minor trimming
Tire - 35/13.50R20 Wheel - 20x9 w/ 5” BS w/minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
View kit installation instructions
