2011-16 4WD Ford F250, F350 Super Duty 7" Stage 5 4-Link lift system, VS 2.5 Reservoir Piggyback shocks w/ CDCV

The ICON Stage 5 front 4-link system is designed to enhance the articulation of the front suspension while improving handling by eliminating the large radius arm bushing and replacing it with spherical bearings in each link. This competition grade, harder surface will minimize deflection to increase the overall handling of your Ford F250 or F350. The lower links include the ICON patented pinch bolt housing that will allow adjustment while on the truck. ICON’s adjustable 4 link system is not only stronger than the factory radius arms, but will enhance performance and improve wheel alignment. These link arms eliminate bind commonly found in the factory radius arms, while increasing the suspensions range of motion.

The vehicle specific 2.5 CDCV reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The piggyback and remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force. When compressing at high velocity, this additional force helps prevent harsh bottom outs and also controls the suspension. With the turn of a knob, the externally adjustable CDC valve restricts oil flow into the reservoir creating 10 levels of compression damping force ranges.

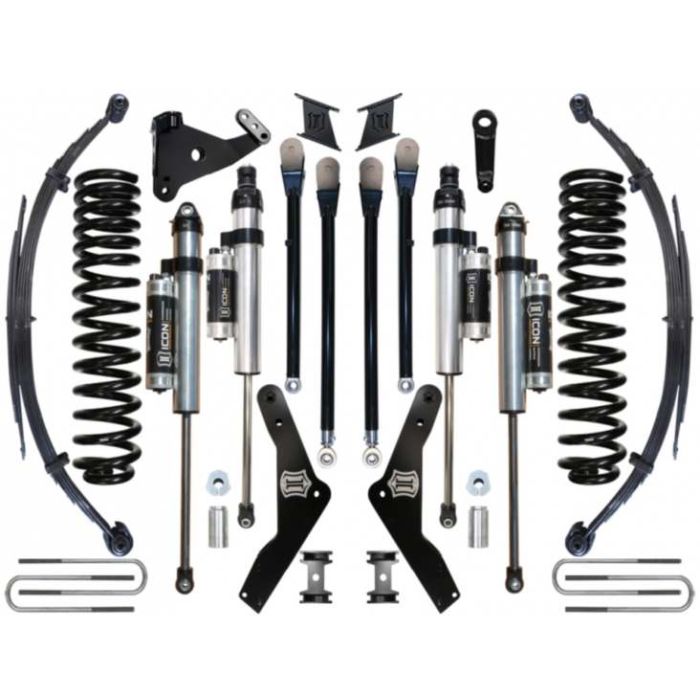

• 7" Lift Dual Rate Coil Springs
• 4-Link system
• Sway Bar Links
• Bump Stop Spacers
• Track Bar Drop Bracket
• Drop Pitman Arm
• Brake Line Brackets
• 5" Rear progressive design leaf pack
• Four VS 2.5 Remote Reservoir Piggyback shocks with CDCV
• Made in the USA
