2017-21 4WD Ford F250, F350 Super Duty 8" 4 Link lift kit, Dirt Logic 4.0 Resi Coilovers, Dirt Logic 2.25 shocks

For maximum performance and ride height, install the Fabtech 8" 4 Link lift kit on your F250 and F350 Super Duty. These large 2" OD heavy wall links feature adjustable alignment cams and 5-Ton joints to pivot at the frame for extended service life. The 4 Links are secured to the frame using thick 1/4" steel brackets. These arms are designed to provide an improved highway ride due to reduced caster change and tackle offroad conditions better than a Radius Arm suspension. This lift kit features Fabtech massive Dirt Logic 4.0 Coilover conversion. Expect outstanding damping capacity while offroading and a quality ride on the pavement . The Coilover simply bolts in place of the factory coil spring without requiring the removal of the coil spring bucket. To allow for full compression travel when running oversized tires, the 4" diameter aluminum remote reservoir mounts above the Coilover. We think you'll agree the Dirt Logic 4.0 Coilover is the biggest and baddest on the market for the Ford Super Duty! Also included is an offset, extended length track bar that is adjustable to address the hyper-sensitive steering box. This exclusive feature repositions the track bar to be closer to neutral with the factory drag link resulting in reduced bump steer and tire shake. The track bar is 4" longer than stock and attaches to the frame with a 1/4" thick frame bracket offset to the driver side with a support brace to eliminate deflection allowing a 15.5 wide tire on 5" backspace wheel to turn full lock without interference.

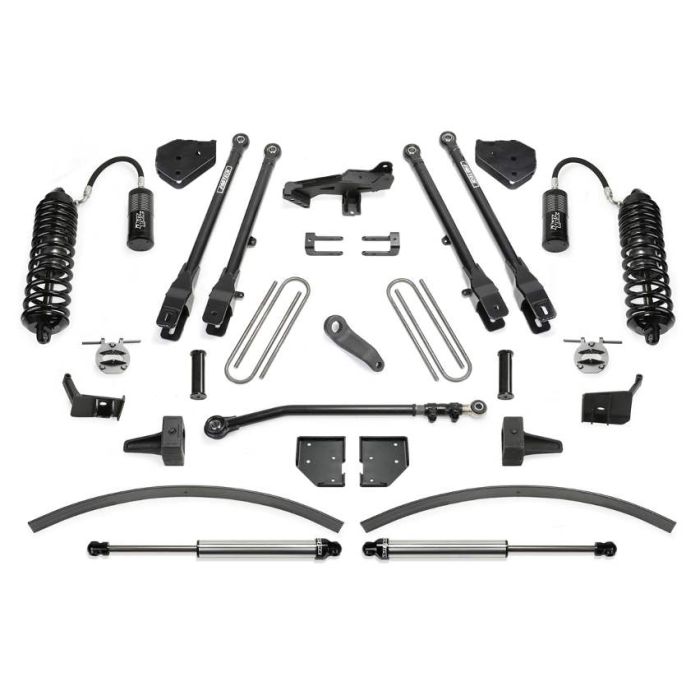

Kit Components
Dirt Logic 4.0 Reservoir Coilover with dual rate coil springs
Link Arms and Brackets
Extended length Track Bar and Bracket
Pitman Arm
Front Sway Bar Brackets
Front bump stops
Brake line brackets
Rear Block & U-Bolt Kit
Rear add-a-leafs
Rear Dirt Logic 2.25 Shocks
All Necessary Hardware
Detailed Install Instructions

Kit Features
FIVE SIXTY Powertrain Warranty
Increased Ground Clearance
Allows up to a 40" tall tire

38/13.50R18 tires w/18X9 wheels w/ 4-3/4" BS w/minor trimming
38/15.50R18 tires w/18X9 wheels w/ 4-3/4" BS w/cutting
38/13.50R20 tires w/20X9 wheels w/ 5" BS w/minor trimming
38/15.50R20 tires w/20X9 wheels w/ 5" BS w/cutting
40/15.50R20 tires w/20X9 wheels w/ 5" BS w/cutting

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
