2017-19 4WD Ford F250, F350 Super Duty 7" Stage 4 lift kit, 2.5 VS series Piggyback monotube shocks

The ICON Stage 4 7” lift kit for the Ford F250 or F350 Super Duty includes a 4 Link Kit that eliminates suspension bind commonly found with factory radius arms to further improve performance during articulation. With the front end freed up and the ability of the 4 link kit to maintain positive caster through the range of travel, expect unparalleled ride quality under all conditions. The Stage 4 system is perfect for both on and off-road use including towing, job site duty and hardcore off-roading. The 2.5 VS Piggyback reservoir monotube shocks are valved for your Super Duty to balance the front and rear performance. They are 100% rebuildable and revalvable. The 2.5 series shocks are a one-piece digressive piston design that are vehicle specific. They have a 7/8" diameter induction hardened, chrome plated shock shaft with 6061 aircraft grade aluminum CNC machined components and PTFE lined spherical bearings. For maximum durability and corrosion resistance the shock bodies are CAD plated and precision machined 1026 DOM steel. The internal bump zone increases damping 20% for improved control. Heat is dissipated to reduce shock fade during prolonged use and the 5WT shock oil provides consistent damping along with a wide temperature range.

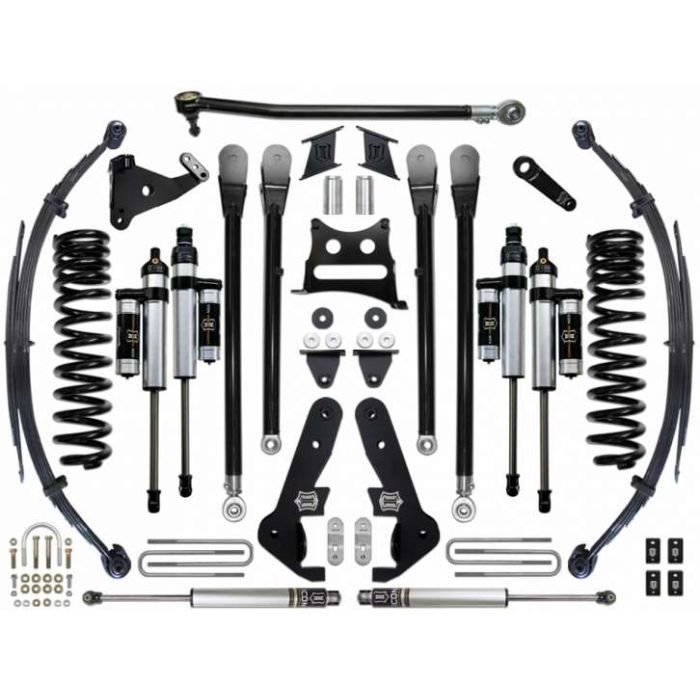

Kit Components
ICON-engineered dual rate coil springs
Upper and lower 4 link arms and brackets
Front and rear 2.5 VS Piggyback reservoir monotube shocks
Adjustable Track Bar
Pitman arm
Bump stop spacer kit
Progressive rear leaf springs
Dual opposing steering stabilizer kit

Kit Features
Approximately 50% increased front wheel travel over stock
Exceptional vehicle control over varying terrain
Lifetime guarantee against coil spring breakage or sag
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Made in the USA
