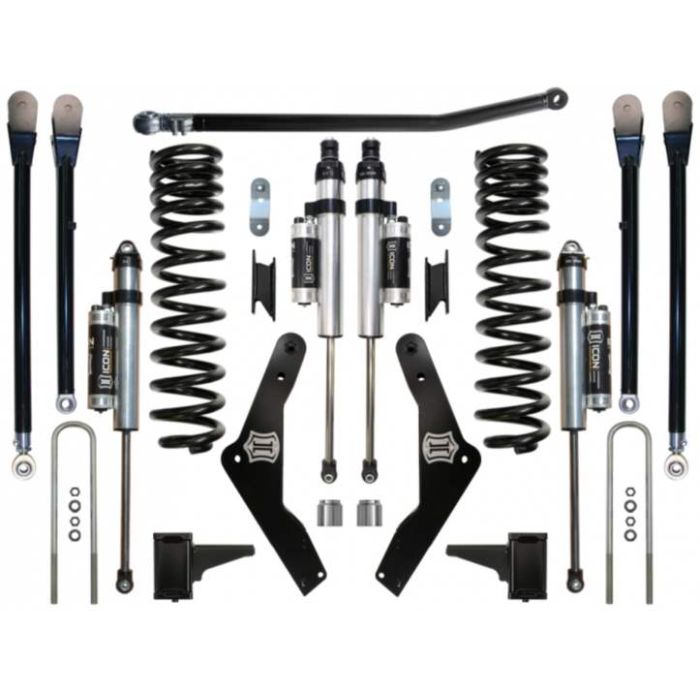

2011-16 4WD Ford F250, F350 Super Duty 4.5" Stage 4 4-Link lift kit, VS 2.5 Reservoir shocks w/ CDCV

The ICON Stage 4 front 4-link system is designed to enhance the articulation of the front suspension while improving handling by eliminating the large radius arm bushing and replacing it with spherical bearings in each link. This competition grade, harder surface will minimize deflection to increase the overall handling of your Ford F250 or F350. The lower links include the ICON patented pinch bolt housing that will allow adjustment while on the truck.

This lift kit also features dual rate front coil springs and 2.5 VS Series Piggyback Remote Reservoir shocks with CDCV, an adjustable track bar with bearing rod end, sway bar drops, bump stop spacers, brake line brackets and a rear block kit.

The vehicle specific 2.5 CDCV reservoir shocks are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The piggyback and remote reservoir shocks feature the unique use of a 6061 billet aluminum manifold below the top cap of the shock to create an internal bump zone to provide an additional 20% of damping force. When compressing at high velocity, this additional force helps prevent harsh bottom outs and also controls the suspension. With the turn of a knob, the externally adjustable CDC valve restricts oil flow into the reservoir creating 10 levels of compression damping force ranges.

The ICON 2.5 CDCV reservoir shocks operate over a wide temperature range. They feature a one-piece digressive piston design, 7/8” diameter chrome plated shock shaft, polyurethane bushings, forged steel mounting stems, PTFE lined spherical bearings, 6061 aircraft grade aluminum CNC machined components, CAD plated, and a precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance.

• 50% increase in wheel travel
• Less body-roll than stock truck
• 4.5" more travel from ride height to front bump stops
• Dual rate coil springs
• Adjustable trac bar for perfect track alignment
• Lifetime guarantee that coil springs won’t sag
• Clears 35" tall tires & 37" tall tires w/ minor trimming
• No change in towing capacity
• No drive shaft modifications needed
• 100% bolt-on system - no drilling,cutting or welding necessary for install
• Made in the USA
