2017-21 4WD Ford F250, F350 Super Duty 4" 4 Link Dirt Logic 4.0 Coilover lift kit, Dirt Logic shocks

Are you a Ford owner looking for unsurpassed articulation and wheel travel? Simply install the Fabtech 4" 4 Link system on your Ford F250 Super Duty. Fabtech designed the link arms using 2" OD heavy wall that have 1/4" thick steel brackets at the axle. Adjustable alignment cams and Fabtech's legendary 5 Ton joints that pivot at the frame provide an extended service lift. The 5 Ton joints are both quiet and strong. Stout 1/4" thick steel frame brackets attach the 4 Link Arms for a solid mount. Front lift comes from our Dirt Logic 4.0 Coilover Shocks that bolt in place of the factory coil springs without removal of the coil spring bucket. For maximum corrosion resistance, Fabtech constructed the Dirt Logics with a stainless steel body. Featured is a giant 4" diameter aluminum remote reservoir that mounts above the Coilover in a horizontal position to allow for full compression travel when using oversized tires.

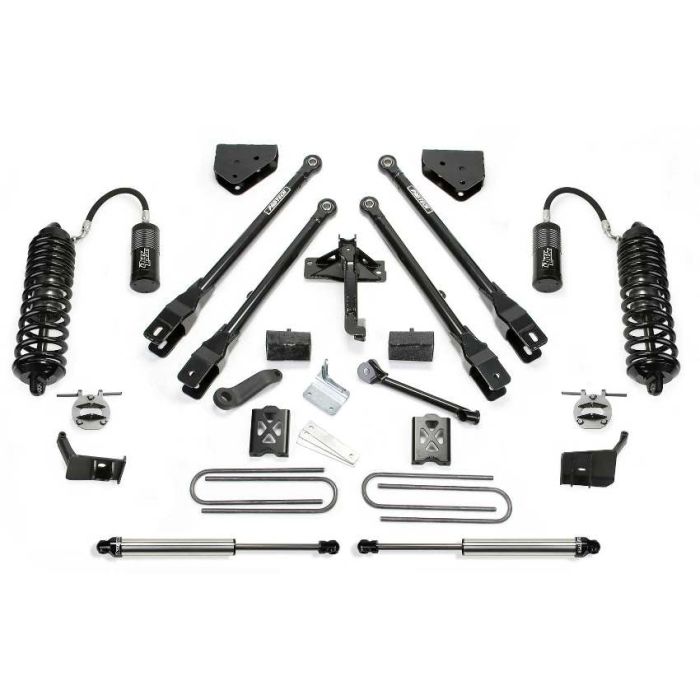

Kit Components
Dirt Logic 4.0 Coilover resi shocks
Sway bar drop brackets
Pitman arm
2" OD Heavy Wall Links
Fabtech Heavy Duty 5 Ton Joint
Track Bar Relocation Bracket
Rear Block Kit
U-Bolts
2 Rear Dirt Logic shocks
All Necessary Hardware
Detailed Install Instructions

Kit Features
FIVE SIXTY Powertrain Warranty
Increased Ground Clearance
Allows a 35" tall tire

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details

Tire and Wheel Info
35/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming
35/12.50R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming
35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

View kit installation instructions
