Honda Ridgeline, Pilot, Passport 2"/1.5" lift kit with sway bar links

Product No

Quick Overview

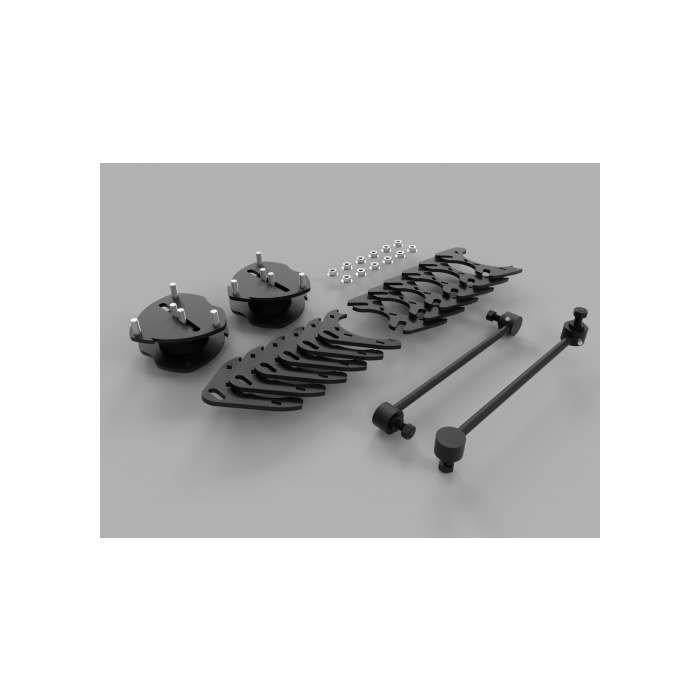

In 2017 Honda made changes to the front suspension on the Ridgeline that removed the built-in camber adjustment and added the need to move the control arms down to install a lift kit. Traxda has addressed both these issues with their 2" lift kit. Traxda strut spacers have 2 degrees (+1/-1) of camber adjustment built in (patents pending). This also makes for easier installation. On the Ridgeline, to prevent the front axles from contacting the bolts that hold the lower control arms, a spacer is included to avoid contact. In addition, the factory sway bar links are replaced with shorter links to prevent the sway bar from contact with the frame at full extension.

The rear struts on the Ridgeline come if three different asymmetrical variants with right and left specific versions. The 1.5" rear strut spacers designed by Traxda take all this into consideration and provides a new design that will fit all three variants of the rear strut. Additionally, an innovative split cap design is used to shave at least an hour off rear installation. The strut remains on the vehicle to lift the rear (patents pending).

  • Designed to retain the stock ride quality

  • Aftermarket shocks are NOT required

  • Alignment specs included, CAMBER adjustment built in to Traxda kit!


Not all 31" tires are the same. Therefore, to avoid rubbing, stay under 31" tall and under 10" wide. Traxda used 265/65-18 (31.6”X10.4”) tires on 18x8 wheels with a +38mm offset that resulted in slight rubbing when backing up or turning left. To avoid rubbing altogether, use 265/65-18 (31.6”X10.4”) with stock wheels (offset +55mm) with slight rubbing that was reduced by trimming the plastic at the rear of the wheel well. Further reduce rubbing by installing a wheel spacer that changes the offset by 16mm.

View kit installation instructions

    • Make: Honda
    • Model: Pilot
    • Vehicle: 2016-22 Pilot 2"/1.5" lift kit with sway bar links
    • Tire Size: 30.5” Tires on Stock Wheels
    • Initialize: 1
    • Record Id: 1

Traxda lift kit fits the following models:
2017 Honda Ridgeline
2018 Honda Ridgeline
2019 Honda Ridgeline
2020 Honda Ridgeline
2021 Honda Ridgeline
2022 Honda Ridgeline

2016 Honda Pilot
2017 Honda Pilot
2018 Honda Pilot
2019 Honda Pilot
2020 Honda Pilot
2021 Honda Pilot
2022 Honda Pilot

2017 Honda Passport
2018 Honda Passport
2019 Honda Passport
2020 Honda Passport
2021 Honda Passport
2022 Honda Passport
2023 Honda Passport
