2020-23 4WD Jeep Gladiator JT, Rubicon 3" Sport lift kit, shock extensions

This Fabtech 3" Sport lift kit is for drivers looking to increase performance of their Jeep Gladiator JT. Front coil springs are a dual rate design that allows extended suspension travel for offroad use without affecting the street ride. Stage one provides a soft ride along with the ability to extend for additional travel. Stage two is designed to address large impact absorption at higher speeds. To level the stance, 1-3/4" rear spacers level the Gladiator while retaining the load carrying capacity and factory ride.

The factory shocks are also retained by utilizing heavy duty shock extension brackets. The extended length sway bar links reposition the sway bars to operate within the factory planes. These extensions prevent the sway bar from going over center and creating bind at full extension travel. Front and rear bump stop extensions use the factory bump stops to provide compliant cushioning at full compression travel.

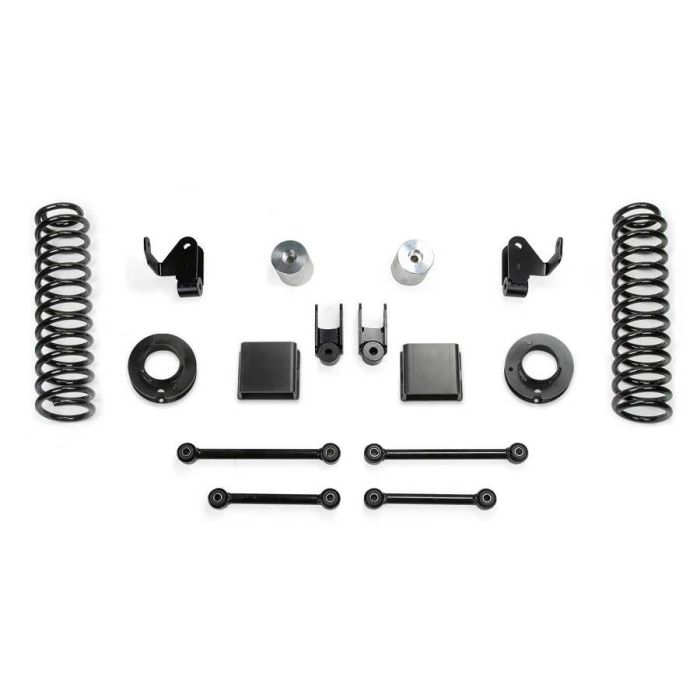

• 3” Front Dual Rate Coil Springs


• 1-3/4” Rear Coil Spring Spacers


• Front & Rear Extended Sway Bar Links with urethane bushings


• Front Bump Stop Extensions


• Rear Bump Stop Brackets


• Front & Rear Shock Extensions

Standard fenders:
35/12.5R17 wheel - 17X9 W/4.5" BS with minor trimming
35/12.5R18 wheel - 18X9 W/4.5" BS with minor trimming
325/65R18 wheel - 18X9 W/4.5" BS with minor trimming
35/12.5R20 wheel - 20X9 W/5" BS with minor trimming
325/60R20 wheel - 20X9 W/5" BS with minor trimming

High Clearance Fenders:
37/12.5R17 wheel - 17X9 W/4.5" BS with minor trimming
37/12.5R18 wheel - 18X9 W/4.5" BS with minor trimming
37/12.5R20 wheel - 20X9 W/5" BS with minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
