2020-23 4WD Jeep Gladiator JT, Rubicon 3" Trail lift kit, Stealth Monotube shocks

Fabtech offers this 3" Trail lift kit for the Jeep Gladiator JT driver looking for enhanced performance that addresses all variants of off-road travel including rock crawling and aggressive trail use. This short arm kit features lower link arms constructed with thick wall steel tubing guaranteed never to bend. Installation is made easier by using the factory lower control arm mounts. The arms include large polyurethane bushings on one end and internal threads on the other end to accept the Fabtech 5 Ton Joint® for a quiet ride and longevity.

Dual rate coil springs are designed to be corner specific to keep the Gladiator level from side to side and to provide increased suspension travel. The first stage provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the JT and address large impact absorption at higher speeds. With the increased ride height, Fabtech addresses the steering geometry with a Drag link Flip kit along with a heavy duty track bar bracket. These additions relocate the steering geometry to the factory plane to allow full articulation without binding the drag link ends in extreme condition.

A rear heavy duty track bar bracket is included to center the axle under the Gladiator to address the new ride height and help keep the factory roll center of the JT. Front and rear bump stop extensions protect the suspension from over cycling. The Stealth Monotube shocks are included to provide an enhanced street and off-road ride quality not found in the factory shocks.

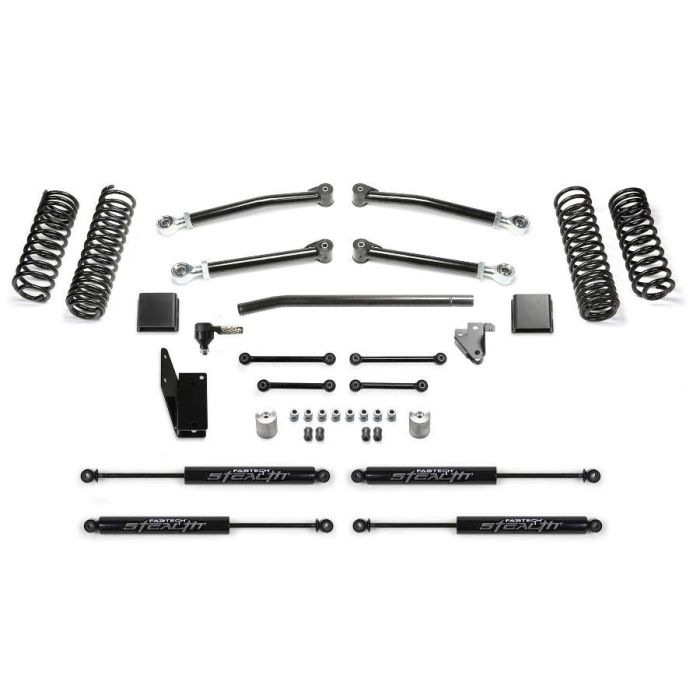

• Front and Rear 5” Dual Rate Coil Springs


• Control link arms - 1.75″ OD. .250″ thick wall


• Drag Link Flip system


• Front and Rear 1/4" thick steel track bar brackets


• Front & Rear Extended Sway Bar Links with urethane bushings


• Front and Rear Bump Stop Extensions


• Front Shock Mount Bracket


• Front & Rear Stealth Monotube shocks

Standard fenders:
35/12.5R17 wheel - 17X9 W/4.5" BS with minor trimming
35/12.5R18 wheel - 18X9 W/4.5" BS with minor trimming
325/65R18 wheel - 18X9 W/4.5" BS with minor trimming
35/12.5R20 wheel - 20X9 W/5" BS with minor trimming
325/60R20 wheel - 20X9 W/5" BS with minor trimming

High Clearance Fenders:
37/12.5R17 wheel - 17X9 W/4.5" BS with minor trimming
37/12.5R18 wheel - 18X9 W/4.5" BS with minor trimming
37/12.5R20 wheel - 20X9 W/5" BS with minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
