2020-23 4WD Jeep Gladiator Mojave 2" Sport II lift kit, shock extensions

This Fabtech 2" Sport II lift kit is for drivers looking to increase performance of their Jeep Gladiator Mojave. Front coil springs are a dual rate design that allows extended suspension travel for offroad use without affecting the street ride. Stage one provides a soft ride along with the ability to extend for additional travel. Stage two is designed to address large impact absorption at higher speeds.

The Mojave features Fox 2.5 Internal Bypass shocks that are retained by using heavy duty extension brackets designed for serious offroad use. Also retained are the Fox hydraulic bump stops and the bump stop pads get relocated in order to work in conjunction with the new ride height for proper suspension travel.

The extended length sway bar links reposition the sway bars to operate within the factory planes. These extensions prevent the sway bar from going over center and creating bind at full extension travel.

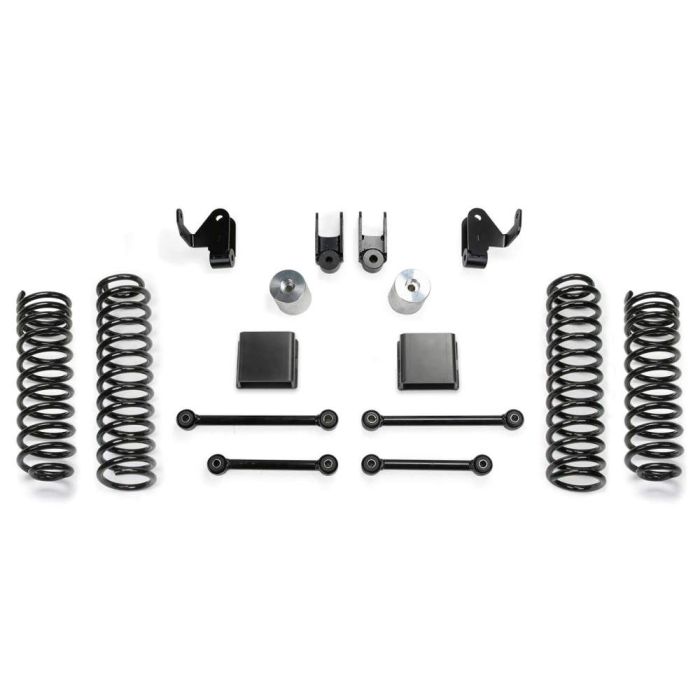

• 2” Front Dual Rate Coil Springs


• Fox shock extensions


• Fox hydraulic bump stop spacers


• Front & Rear Sway Bar Links with urethane bushings

Standard fenders:
35/12.5R17 wheel - 17X9 W/4.5" BS with minor trimming
35/12.5R18 wheel - 18X9 W/4.5" BS with minor trimming
325/65R18 wheel - 18X9 W/4.5" BS with minor trimming
35/12.5R20 wheel - 20X9 W/5" BS with minor trimming
325/60R20 wheel - 20X9 W/5" BS with minor trimming

High Clearance Fenders:
37/12.5R17 wheel - 17X9 W/4.5" BS with minor trimming
37/12.5R18 wheel - 18X9 W/4.5" BS with minor trimming
37/12.5R20 wheel - 20X9 W/5" BS with minor trimming

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
