2007-18 Jeep Wrangler JK 4-Door 5" Crawler Long Travel lift kit, Dirt Logic 2.25 Reservoir shocks

Looking for some high performance with your Jeep when hitting the woods and trails? Check out the Fabtech 5" Crawler Long Travel lift kit for your 4 door Wrangler JK. Designed with the more aggressive offroad driver in mind, this lift kit features all 8 link arms mounted high on the frame for increased ground clearance. Unlike other arms, there is no bend. Each lower link is built from 2" OD .313 thick wall DOM that is so strong, Fabtech provides a warranty against bending. The arms are internally threaded to accept the Fabtech 5 Ton Joint that is guaranteed never to wear out. These link arms are simply the best heavy duty units you can buy!

The included dual rate coil springs are made in America and allow for 12” of wheel and articulation travel providing superior suspension performance. The first stage provides for a soft ride with the ability to then extend for long travel range. The second stage then handles the payload of the Jeep and can address large impact absorption at high speeds. No need for spring retainers or limiting straps. These coils will stay seated throughout the suspension travel and articulation range for offroad long suspension travel and a smooth highway ride.

The Fabtech Dirt Logic 2.25 shocks are a take apart shock with stainless steel body and Billet aluminum piston and 7/8" NitroSteel black piston rod. The Reservoir is aluminum with stainless steel O-ring hose. Pretuned for each Fabtech suspension, you can expect a superior ride both on and offroad.

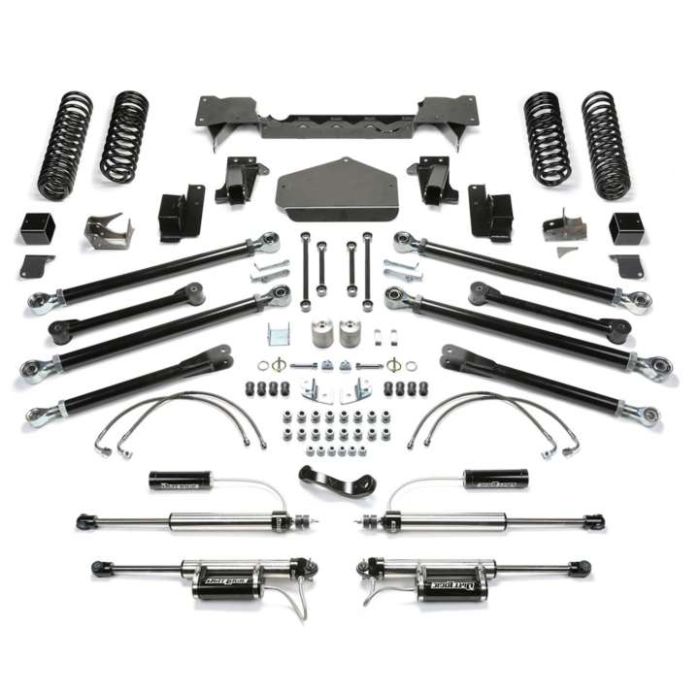

• 8 Long Arm Links & Mounts
• Long Travel Coil Springs Front & Rear
• Sway Bar Links Front & Rear
• Lower long travel shock brackets
• Front and Rear Track Bar brackets
• Pitman Arm
• Stainless Steel front & rear Brake Lines
• E Brake Bracket
• Bump Stop Extensions Front
• Bump Stop Brackets Rear
• 4 Dirt Logic 2.25 Reservoir shocks

With stock fenders:
Use 37/12.50R17 tires W/ 17X9 wheels W/ 4.5” BS W/ cutting
Use 37/12.50R18 tires W/ 18X9 wheels W/ 4.5” BS W/ cutting
Use 37/12.50R20 tires W/ 20X9 wheels W/ 5” BS W/ cutting

With tube fenders:
Use 37/12.50R17 tires W/ 17X9 wheels W/ 4.5” BS with no trimming
Use 40/13.50R17 tires W/ 17X9 wheels W/ 4.5” BS with cutting



This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
