2021 4WD Jeep Wrangler 4XE 3" Trail lift kit, Stealth Monotube shocks

The Fabtech 3" Trail edition lift kit for the Jeep Wrangler 4XE is designed for more adventurous drivers wanting to experience overland expeditions, rock crawling and aggressive trail use. This enhanced performance does not sacrifice the compliant street ride however. The included heavy duty link arms utilize the factory control mounts making for an easy installation. These arms are guaranteed never to bend due to the 1.75" OD .250" thick wall steel tubing. One end has large polyurethane bushings and the other has internal threads that accept the Fabtech 5 Ton Joint to provide a quiet ride and extended life. Long travel dual rate coil springs made in America are designed to allow long travel when off-roading while maintaining a smooth street ride. The first stage provides a soft ride with the ability to extend providing additional travel when needed. The second stage is designed to address large impact absorption when traveling at higher speeds and can handle the payload of the Jeep. To keep your Wrangler JL level side to side, each coil spring is corner specific. Steering geometry is maintained with a draglink flip system and a heavy duty track bar bracket allowing full articulation without binding in extreme conditions. The factory bump stops are retained and four bump stop extensions cushion at full compression. This retains the stock down travel thereby eliminating over-cycling of the suspension and driveline. To keep the factory sway bars operating within the factory planes, extended front and rear sway bar links are included. This will prevent the links and sway bar from going over center and creating bind at full travel extension. The factory steering geometry with the pitman arm is retained with a heavy duty draglink relocated on the steering knuckle. This eliminates bump steer and provides a bind-free operation at full articulation. The load on the steering box is not increased like a dropped pitman arm can.

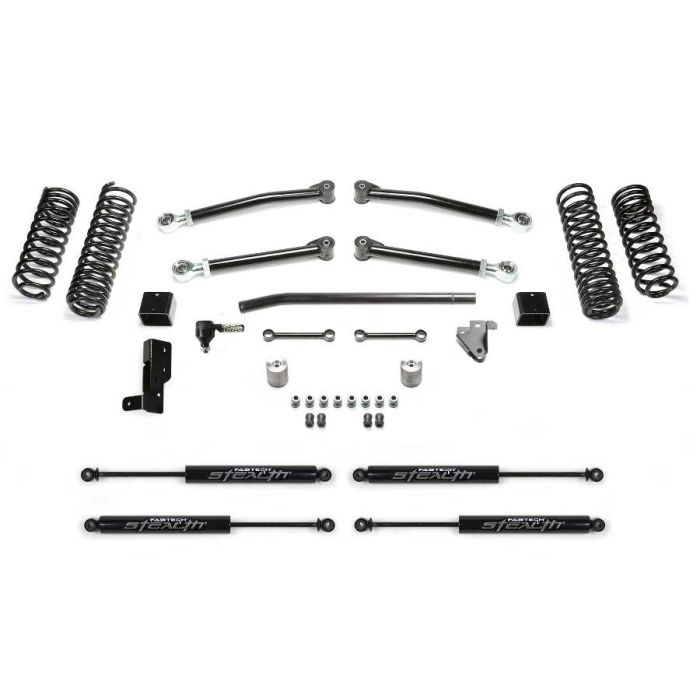

Kit Components
Front and rear corner specific dual rate coil springs
Front & rear lower 5 Ton link arms
Front & rear Bump stop extensions
Drag link flip system
Front and rear extended sway bar links with urethane bushings
Front & rear track bar bracket
Front shock mount bracket
Four Stealth Monotube shocks

Kit Features
Easy install
Increased ground clearance
Long travel Dual Rate coil Springs are corner specific
Drag Link flip relocates the steering geometry to the factory plane
Lifetime Warranty

Stock Fenders
35/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/minor trimming
35/12.50R17 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
325/65R18 Wheel Size – 18X9 w/ 4.5in BS w/minor trimming
35/12.50R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
325/60R20 Wheel Size – 20X9 w/ 5in BS w/minor trimming
High Clearance Fenders
37/12.50R17 Wheel Size – 17X9 w/ 4.5in BS w/cutting
37/12.50R18 Wheel Size – 18X9 w/ 4.5in BS w/cutting

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
