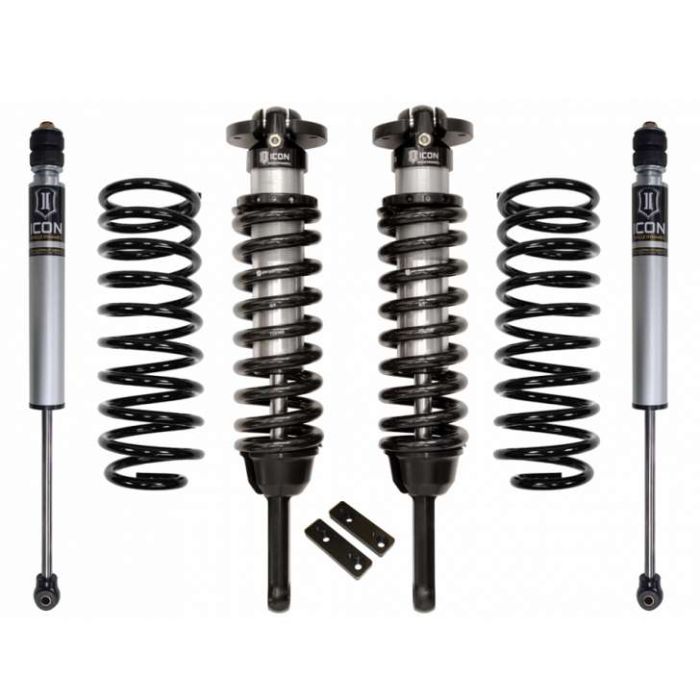

2003-09 Toyota 4Runner Stage 1 Coilover 0-3.5" Lift Kit, VS 2.0 Aluminum shocks

The ICON principal focus for the Toyota 4Runner is on increased wheel travel and damping ability for outstanding on and off road vehicle control and ride quality. This system will significantly improve factory body roll and overall driving ability. This Stage 1 coilover lift kit features front and rear coil springs engineered by Icon for superior vehicle "feel" through the range of travel. To allow for larger, more aggressive wheel and tire combinations, the coilovers are height adjustable up to 3.5".

The vehicle specific (VS) rear 2.0 aluminum series shocks are specifically designed for each application. They are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. These shocks operate over a wide temperature range and are designed with a nitrogen charged monotube internal reservoir for exceptional cooling. The chrome plated hardened steel shaft with 6061 aluminum rod end, top cap and internals ensure strength and durability. Poly bushings, zinc plated sleeves for factory fitment. The anodized aluminum body provides superb heat dissipation, excellent corrosion resistance and a high-tech appearance. The rubber top out bumper allows noise free operation.

ICON offers the best suspension on the market for the most discriminating buyer looking for a top of the line product guaranteed to perform. This Stage 1 lift kit is perfect for towing, riding on rough terrain or country roads all while maintaining a smooth highway feel.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific front shocks for superior shock damping and control
• Adjustable coilovers provide 0-3.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 5/8" shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• Made in the USA

View coilover installation instructions
