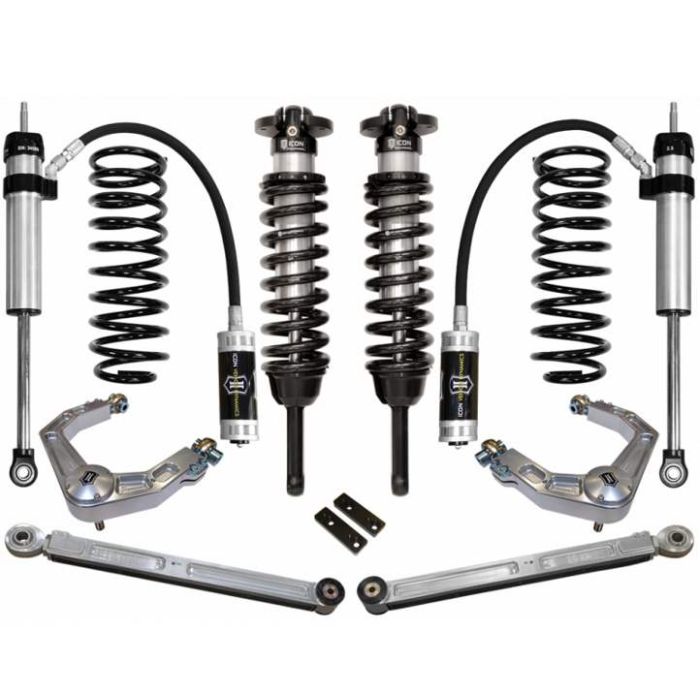

Toyota FJ Cruiser, 4Runner Stage 4 Coilover 3" Billet UCA Lift Kit, VS 2.5 Remote Reservoir shocks

The ICON principal focus for the Toyota FJ Cruiser and 4Runner is on increased wheel travel and damping ability for outstanding on and off road vehicle control and ride quality. This system will significantly improve factory body roll and overall driving ability. This Stage 4 coilover lift kit features coil springs engineered by Icon for superior vehicle "feel" through the range of travel. To allow for larger, more aggressive wheel and tire combinations, the coilovers are height adjustable up to 3".

The ICON billet aluminum adjustable control arms use 1" PFTE lined stainless uniballs that are combined with 17-4 stainless taper pin adapters that will increase the upper arms misalignment. This allows for smooth bump and droop wheel travel without factory ball joint bind so common with factory components. Included is an o-ring sealed cover cap to prevent dirt or other elements from collecting on top of the uniball. This feature protects against premature wear or tearing of the PTFE liner. Combine these control arms with the ICON 2.5 coilover shocks for a huge improvement in performance and handling.

Stage 4 also includes a set of ICON tubular steel rear lower links. These are much stronger than OE links and feature a low maintenance multi-durometer bushing. The links can be adjusted for optimum pinion angle and have been designed to provide correct roll steer geometry for the best possible handling either on or off-road.

The vehicle specific (VS) 2.5 series shocks are specifically designed for each application. They are 100% rebuildable and revalvable. This high quality upgrade will improve ordinary street driving and weekend warriors will discover improved off-road performance. The front shocks operate over a wide temperature range and are designed with a nitrogen charged monotube internal reservoir. The VS 2.5 rear shocks have an external reservoir. The chrome plated hardened steel shaft with 6061 aluminum rod end, top cap and internals ensure strength and durability. Poly bushings, zinc plated sleeves for factory fitment. The anodized aluminum body provides superb heat dissipation, excellent corrosion resistance and a high-tech appearance. The rubber top out bumper allows noise free operation.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific front and rear shocks for superior shock damping and control
• Adjustable coilovers provide 0-3" of lift height
• 6061 Billet Aluminum CNC machined control arms with 1” PTFE lined all stainless Uniballs
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK Rod End bearings for extended longevity and minimal deflection
• Billet Aluminum Lower Rear Trailing Arm Kit
• Made in the USA

View upper control arm installation instructions
View coilover installation instructions
View lower link installation instructions
