2015-23 6-Lug Toyota Tacoma, Prerunner 3" Uniball UCA lift kit, Dirt Logic 2.5 Resi Coilovers & shocks

$3,505.07
Product No
K7063DL-FT
FREE SHIPPING Lower 48 States

Quick Overview

Replace the thin stock upper control arms on your Toyota Tacoma or Prerunner with the Fabtech Uniball Upper Control arms. These control arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that replace the upper ball joints. For a more positive road feel, the chromoly tubing will reduce flex that's found in stock arms. They feature heat treated 17-4 stainless steel tapered Uniball pins that fit in the factory ball joint taper without modification to the spindle in case you want to return to stock. They attach to the factory spindle and require no drilling. These are designed for aggressive offroading and severe duty use with both stock and aftermarket suspension systems that retain the stock control arms. Combining the Uniball Upper Control Arms with the Dirt Logic 2.50 Resi Coilover with Eibach coil springs provides superior damping with additional wheel travel. The rear Dirt Logic 2.25 shocks with reservoir are required so there is no loss of suspension travel. Both front and rear Dirt Logics have 2.50" OD aluminum reservoir with stainless steel O-ring hose. This Fabtech high end system will give you outstanding performance with minimal lift for higher speed offroad use. For even more enhanced ride quality, Fabtech has designed a rear 3-leaf spring pack. This eliminates the stiff lower overload leaf to provide improved ride quality. The Fabtech Limited Lifetime Warranty assures you of many great years of service from your Tacoma.

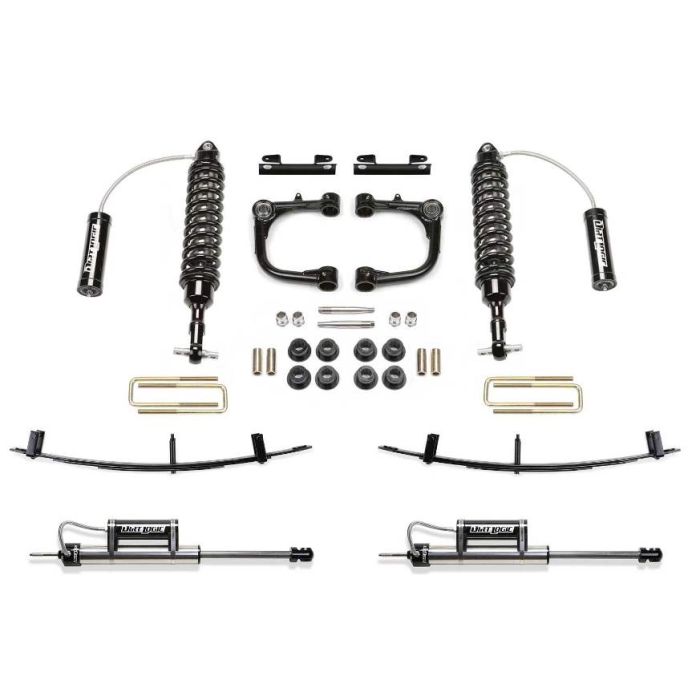

Kit Components
Front Dirt Logic 2.5 resi coilovers
Rear Dirt Logic 2.25 resi shocks
Tubular uniball upper control arms
Rear three leaf spring pack
Rear U bolt kit

Kit Features
Coilover shocks provide 10" of wheel travel
Bolt on installation
Eliminates factory ball joint for super strong 1" ID Stainless American Uniball
Chromoly tubing reduces flex found in stock arms for more positive road feel
Three leaf rear spring pack for improved ride and articulation


Tire and Wheel Info
33/12.50R17 tires w/ 17x8 wheels w/ 4 5/8” BS w/ minor trimming
275/70R18 tires w/ 18x9 wheels w/ 4 3/4” BS w/ minor trimming
275/60R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming
Upper Control Arm instructions
Coilover instructions


This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details

    • Make: Toyota
    • Model: Tacoma
    • Vehicle: 2015 6-Lug Tacoma 3" Uniball UCA lift kit, Dirt Logic 2.5 Resi Coilovers & shocks
    • Drive: 2WD, 4WD
    • Initialize: 1

Fabtech lift kit fits the following models:
2015 Toyota Tacoma
2016 Toyota Tacoma
2017 Toyota Tacoma
2018 Toyota Tacoma
2019 Toyota Tacoma
2020 Toyota Tacoma
2021 Toyota Tacoma
2022 Toyota Tacoma
2022 Toyota Tacoma
2023 Toyota Tacoma
