Fabtech K7065DL Toyota Tacoma, Prerunner Dirt Logic 2.5 Coilover lift kit

Be the first to review this product

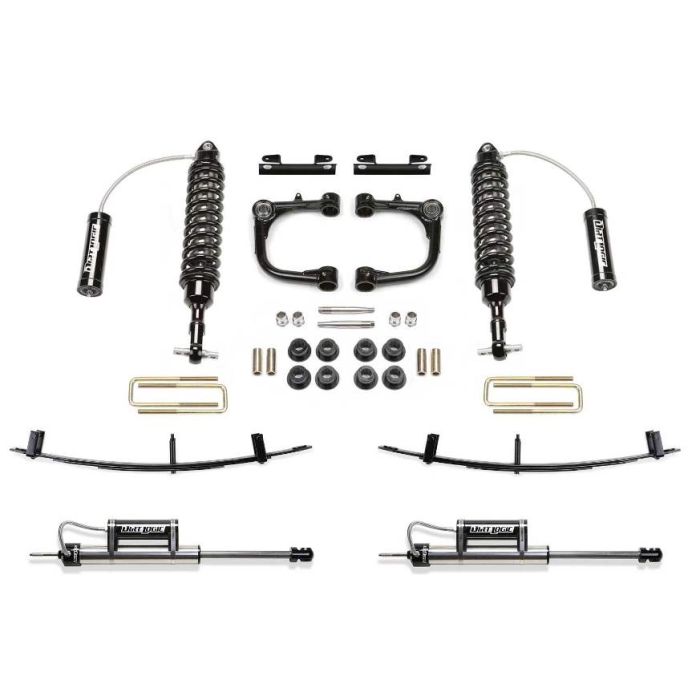

2005-14 6-Lug Toyota Tacoma, Prerunner 3" Uniball UCA lift kit, Dirt Logic 2.5 Resi Coilovers & shocks

Product No: K7065DL FT

Availability: In stock

3174.74 $3,174.74
FREE SHIPPING Lower 48 States

Important Notes


Quick Overview

Replace the thin stock upper control arms on your Toyota Tacoma or Prerunner with the Fabtech Uniball Upper Control arms. These control arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that replace the upper ball joints. For a more positive road feel, the chromoly tubing will reduce flex that's found in stock arms. They feature heat treated 17-4 stainless steel tapered Uniball pins that fit in the factory ball joint taper without modification to the spindle in case you want to return to stock. They attach to the factory spindle and require no drilling. These are designed for aggressive offroading and severe duty use with both stock and aftermarket suspension systems that retain the stock control arms.

Combining the Uniball Upper Control Arms with the Dirt Logic 2.50 Resi Coilover with Eibach coil springs provides superior damping with additional wheel travel. The rear Dirt Logic 2.25 shocks with reservoir are required so there is no loss of suspension travel. Both front and rear Dirt Logics have 2.50" OD aluminum reservoir with stainless steel O-ring hose. This Fabtech high end system will give you outstanding performance with minimal lift for higher speed offroad use.

For even more enhanced ride quality, Fabtech has designed a rear 3-leaf spring pack. This eliminates the stiff lower overload leaf to provide improved ride quality. The Fabtech Limited Lifetime Warranty assures you of many great years of service from your Tacoma.

Use 33/12.50R17 tires w/ 17x8 wheels w/ 4 5/8” BS w/ minor trimming
Use 275/70R18 tires w/ 18x9 wheels w/ 4 3/4” BS w/ minor trimming
Use 275/60R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Upper Control Arm instructions.
Coilover instructions

This Fabtech lift kit is covered by their FIVE SIXTY Powertrain Warranty. See Details
    • Make: Toyota
    • Model: Tacoma
    • Vehicle: 2005-14 6-Lug Tacoma 3" Uniball UCA lift kit, Dirt Logic 2.5 Resi Coilovers & shocks
    • 2or4: 2WD, 4WD


Fabtech lift kit fits the following models:
2005 Toyota Tacoma
2006 Toyota Tacoma
2007 Toyota Tacoma
2008 Toyota Tacoma
2009 Toyota Tacoma
2010 Toyota Tacoma
2011 Toyota Tacoma
2012 Toyota Tacoma
2013 Toyota Tacoma
2014 Toyota Tacomama
