RCD 10-47400-N Toyota Tundra lift kit

Be the first to review this product

2000-03 Toyota Tundra 4"-6" lift kit without struts or shocks

Product No: 10-47400-N RC

Availability: In stock

FREE SHIPPING Lower 48 States

Important Notes

* Longer front struts and rear shocks are required and sold separately.
* 2003-04 models may require an additional steering extension 20-70772. There is no certain production date to determine which 2003-04 models require this part, but if it is not needed, it may be returned for credit.
* Kit will only fit vehicles manufactured before 8/2003 with small lower control arm and ball joint

Quick Overview

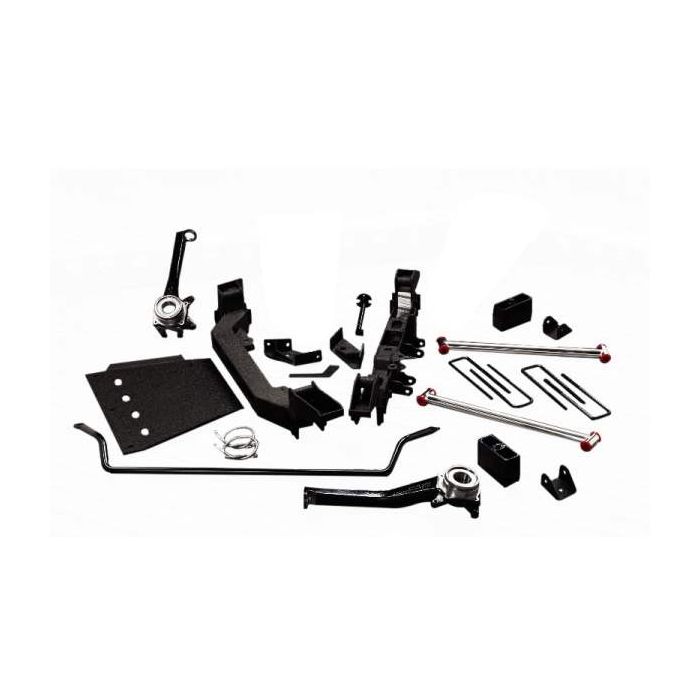

When it comes to the pursuit of perfection, Race Car Dynamics never rests! This is self-evident with their offerings for the Toyota truck lines. The RCD 4”-6” lift kit for the Toyota Tundra utilizes a high quality design and manufacturing capability that produces a system that rides and performs the same on the street or in the mud. This setup matches very well with the complex suspension of the Tundra and provides superior front end travel, articulation, and control. It's an easy installation and maintains factory ride quality characteristics. Included in the 4”-6” RCD lift kit for the Toyota Tundra are:

· CNC Machined Cast Iron Steering Knuckles
· Front & Rear Crossmembers
· Polished Stainless Steel "Twin-Link" Anti-Compression Struts
· Replacement Front Sway Bar
· Steel Braided Front Brake Lines
· Skid Plate
· All Necessary Hardware

Max Tire Size: 33" x 12.5" - no modification necessary. 35" x 12.5" - minor fender and/or bumper trimming may be necessary.
Max Backspace: 16" x 8" - 4" backspacing

Product Attachments

View File10-47400, 10-47404 Instructions    Size: (2.33 MB)

Required and/or Related Items

    • Make: Toyota
    • Model: Tundra
    • Vehicle: 2000-03 Tundra 4"-6" lift kit without struts or shocks
    • 2or4: 2WD, 4WD
    • Upsell: 20-70772 RC


RCD lift kit fits the following models:
2000 Toyota Tundra
2001 Toyota Tundra
2002 Toyota Tundra
2003 Toyota Tundra
