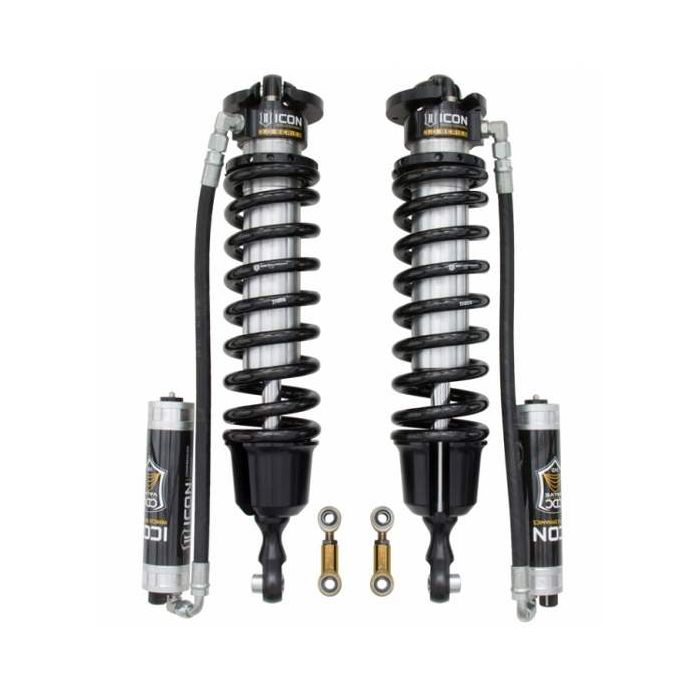

2007-21 Toyota Tundra 3.0 Series Remote Reservoir CDCV Coilover Kit

If your the kind of driver that wants to max out the Tundra off-road capacity, upgrade to the ICON 3.0 Series Remote Reservoir CDCV Coilover Kit. This upgrade was specifically designed to hit new levels of off-road performance by increasing wheel travel and significantly improving front shock damping ability. The 3.0 series shocks provide increased vehicle stability and control at the extreme of off-road use while also providing the same for street driving. There's a 50% increase in piston surface area and a 100% increase in the "bump" zone as compared to the 2.5 series shocks. The featured multi-stage hydraulic bump Zone exponentially increases bottom-out resistance as the shock travels thru the last 40% of travel. This keeps the Tundra in check when experiencing hard hits or unexpected obstacles.

The ICON 30 series coilovers are designed as an OEM shock replacement. These CDC valve shocks are application specific and internally calibrated based on motion ratio, shaft diameter and vehicle weights. The large adjuster knob provides 10 detented stops and allows the user to optimize the specific ride for all types of terrain. The knob is clearly engraved for a direct reading of the current setting.

They are ride height adjustable from 1.63" to 3.5" of front lift. This allows for larger and more aggressive tire and wheel combinations. Included are Eibach coil springs and FK rod end bearings to ensure these shocks function at maximum potential without issue.

• Significant increase in damping ability for excellent performance in extreme off-road conditions


• Increased wheel travel and vehicle specific valving provides comfortable and consistent ride quality on and off-road


• Adjustable coilovers provide 1.63-3.5” of front lift height


• Direct bolt-in to OEM shock location makes for an easy install


• ICON’s multi-stage, tuneable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel


• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations


• 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping with temperature increase


• High quality ICON-engineered Eibach springs offer increased travel and performance


• PTFE lined COM12 spherical bearings ensure maximum strength and durability


• Heavy duty 1” CNC machined shock shafts


• Multi stage CAD plated shock body with hard anodized piston and top cap


• Fully serviceable


• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability


• Made in the USA
